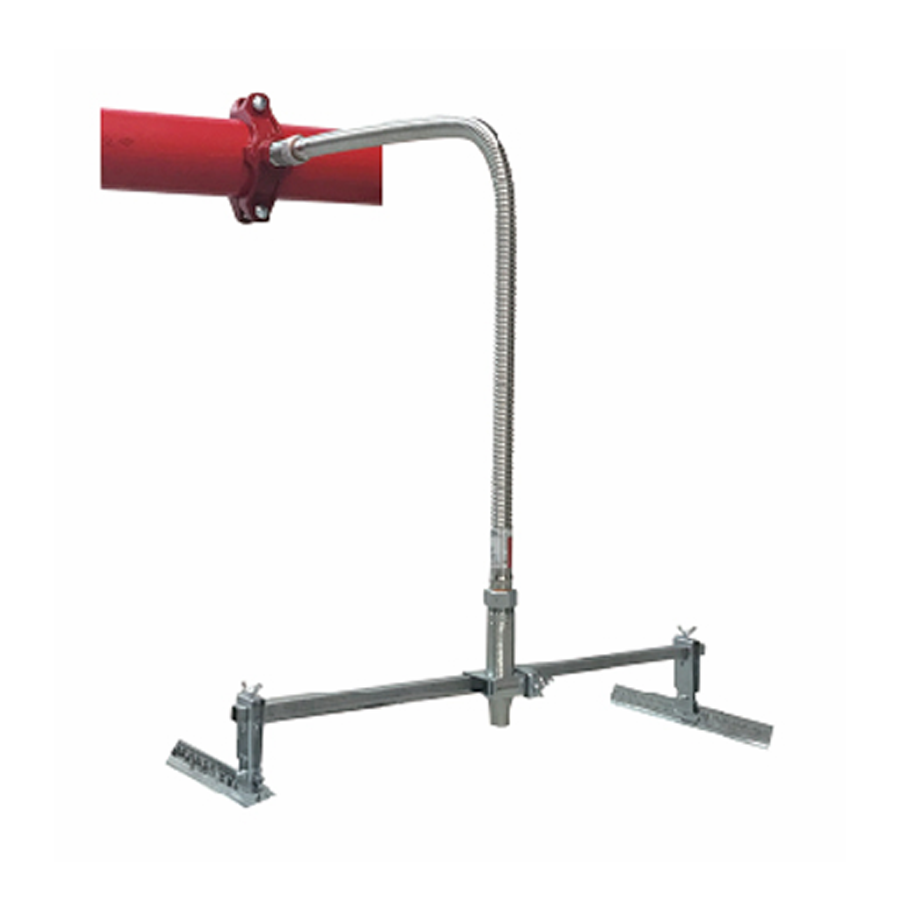

Description
Safe & Reliable, Easy and Quick installation, Economizing on cost, Environmental Friendly
10 X Faster
10 times time saving against
traditional installation
100% Tested
10096 leak tested prior
to despatch
Earthquake
Reducing the damage
in the earthquake
Connection
DN25 x DN15 or DN20 (1 “x 1/2″ or 3/4”)
Max. Service Pressure
14 Bar/ 200 PSI
Max. Ambient Temp.
107° C / 225° F
| cULus listing data | |||
| Nom. Inlet by Outlet |
Assembly Length |
Max. No. of 900 Bends |
Equivalent Length of 1 in. Schedule 40 Steel Pipe(C=120) |
|---|---|---|---|
| in. | ft. / mm | n x 90° | ft. |
| 1 X 1/2 | 2.3(700) | 2 | 32 |
| 1 X 1/2 | 3.3(1000) | 3 | 55 |
| 1 X 1/2 | 3.9(1200) | 3 | 64 |
| 1 X 1/2 | 4.9(1500) | 3 | 75 |
| 1 X 1/2 | 5.9(1800) | 3 | 81 |
| 1 X 3/2 | 2.3(700) | 3 | 31 |
| 1 X 3/2 | 3.3(1000) | 3 | 50 |
| 1 X 3/2 | 3.9(1200) | 3 | 57 |
| 1 X 3/2 | 4.9(1500) | 3 | 68 |
| 1 X 3/2 | 5.9(1800) | 3 | 79 |
| clJLus listing data I Minimum Bend Radius 3″(76mm) 1 200psi 1 2250F | |||
| Nom. Inlet by Outlet |
Assembly Length |
Max. No. of 900 Bends |
Equivalent Length of 1 in. Schedule 40 Steel Pipe(C=120) |
|---|---|---|---|
| in. | ft. / mm | n x 90° | ft. |
| 1 X 1/2 | 2.3(700) | 3 | 18 |
| 1 X 1/2 | 3.3(1000) | 5 | 23 |
| 1 X 1/2 | 3.9(1200) | 7 | 29 |
| 1 X 1/2 | 4.9(1500) | 9 | 39 |
| 1 X 1/2 | 5.9(1800) | 12 | 50 |
| 1 X 3/2 | 2.3(700) | 3 | 20 |
| 1 X 3/2 | 3.3(1000) | 5 | 24 |
| 1 X 3/2 | 3.9(1200) | 7 | 31 |
| 1 X 3/2 | 4.9(1500) | 9 | 40 |
| 1 X 3/2 | 5.9(1800) | 12 | 70 |
| FM approval data I Minimum Bend Radius 9″(230mm) 1 175psi 1 2250F | |||||
| NPT | k-Factor | Minimum Bend Radius |
Max. No. of 90° Bends |
Hose Assembly length |
Equivalent Length of 1 in. Schedule 40 Steel Pipe |
|---|---|---|---|---|---|
| in. | – | in. / mm | n x 90° | ft. | ft.(m) |
| 1/2 | 5.6 | 9 (230) | 1 | 2.3 | 22.9 (6.9) |
| 1/2 | 5.6 | 9 (230) | 2 | 3.3 | 34.6 (10.5) |
| 1/2 | 5.6 | 9 (230) | 3 | 3.9 | 41.0 (12.5) |
| 1/2 | 5.6 | 9 (230) | 4 | 4.9 | 50.4 (15.3) |
| 1/2 | 5.6 | 9 (230) | 4 | 5.9 | 58.5 (17.8) |
| 3/2 | 8.0 | 9 (230) | 1 | 2.3 | 15.7 (4.8) |
| 3/2 | 8.0 | 9 (230) | 2 | 3.3 | 26.9 (8.2) |
| 3/2 | 8.0 | 9 (230) | 3 | 3.9 | 34.8 (10.6) |
| 3/2 | 8.0 | 9 (230) | 4 | 4.9 | 43.8 (13.5) |
| 3/2 | 8.0 | 9 (230) | 4 | 5.9 | 53.4 (16.2) |
| Description | Material |
|---|---|
| Corrugated Tube | Stainless Steel 304 |
| Braid Sleeving | Stainless Steel 304 |
| Discharge Nipple (Reducing Nipple I Outlet) | Carbon Steel, Zinc Plated |
| Inlet Nipple | Carbon Steel, Zinc Plated |
| Slip Nut | Carbon Steel, Zinc Plated |
| Isolation Ring | Nylon |
| Gasket | Silicone or EPDM |
| Center Bracket | Carbon Steel, Zinc Plated |
| Side Bracket | Carbon Steel, Zinc Plated |
| Bolts & Screws for side bracket | Carbon Steel, Zinc Plated |
