Description
Product DescriptionHSN : 84812000

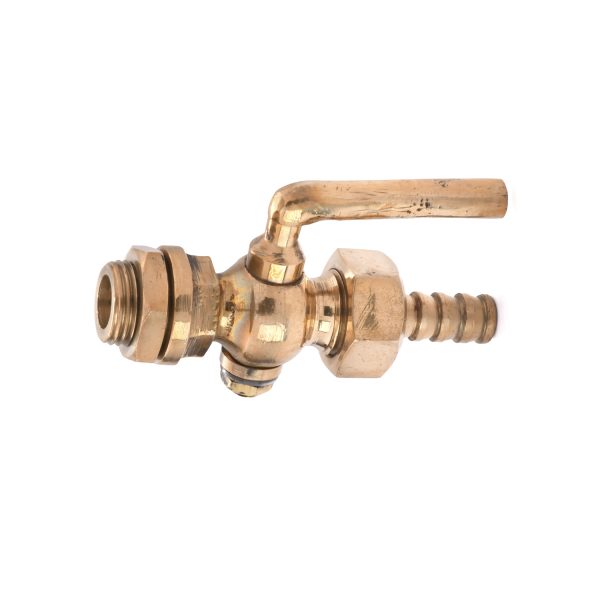

Product : ‘SANT’ Bronze Pressure Gauge Valve
Body Material cum Standard : Bronze IBR 282(a)(iv) Gr.B
Type of Seat : Plug type
End Details : Screwed female BSP Parallel threads to BS 21.
Testing & Certification
Hydraulic Test Pressure : 500 Psig.Hyd.
Working Pressure : Max.BOP 250 Psig.(17.58Kg/cm²)
Maximum Working Temperature: 225°C (435°F)
Test Certificate in Form lll-C as per IBR is furnished with every supply.
Application
Materials
| Components | Materials | Specifications |
|---|---|---|
| Body, Plug, Coupling Nut, Tail Pipe & Washer | Bronze | IBR 282(a)(iv) Gr.B |
| Nut | Forged Brass | IS:6912 FLB |
Dimensions (in mm)
| Nominal Size | Nominal Size (Inches) | F |
|---|---|---|
| 10 | 3/8 | 140±1.5 |
| 15 | 1/2 | 140±1.5 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
