Description

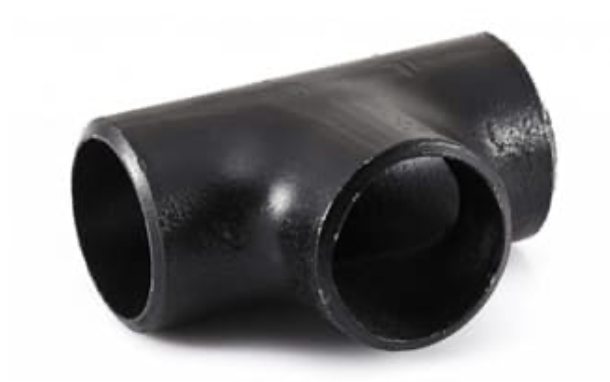

| Product | Equal Tee |
| Specification | Details |
| Material | Mild steel (MS) |
| Standards | ASME B16.9 / IS / DIN / EN |
| Sizes Available | 1/2” to 48” |
| Thickness (Schedule) | SCH 10, SCH 20, SCH 40, SCH 80, SCH 120, SCH 160, SCH XXS |
| Dimensions | Equal branch diameter to main pipe diameter |
| Working Pressure | Up to 2500 PSI depending on wall thickness |
| Ends | Beveled Ends (BE) as per ASME B16.25 |
| Surface Finish | Black Paint / Primer Coated / Machined |
| Applications | Oil & Gas, Petrochemical, Pipelines, HVAC, Water Treatment, etc. |
| Connection Type | Butt-Weld |
