Description

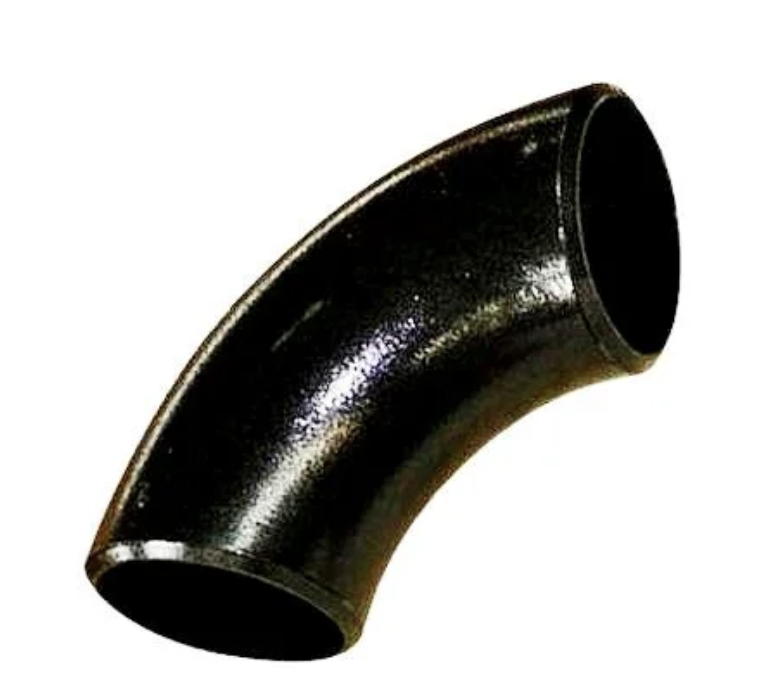

| Product | 90- Degree Elbow |
| Specification | Details |
| Material | Mild steel (MS) |
| Standards | ASME B16.9 / IS / DIN / EN |
| Sizes Available | 1/2” to 48” |
| Thickness (Schedule) | SCH 10, SCH 20, SCH 40, SCH 80, SCH 120, SCH 160, SCH XXS |
| Working Pressure | Up to 2500 PSI depending on wall thickness |
| Radius, | Short Radius (SR) / Long Radius (LR) |
| Ends, | Beveled Ends (BE) as per ASME B16.25 |
| Angle, | 90° |
| Surface Finish, | Black Paint / Primer Coated / Machined |
| Applications, | Pipelines, Oil & Gas, Petrochemical, Power Plants, HVAC, etc. |
| Connection Type | Butt-Weld |
