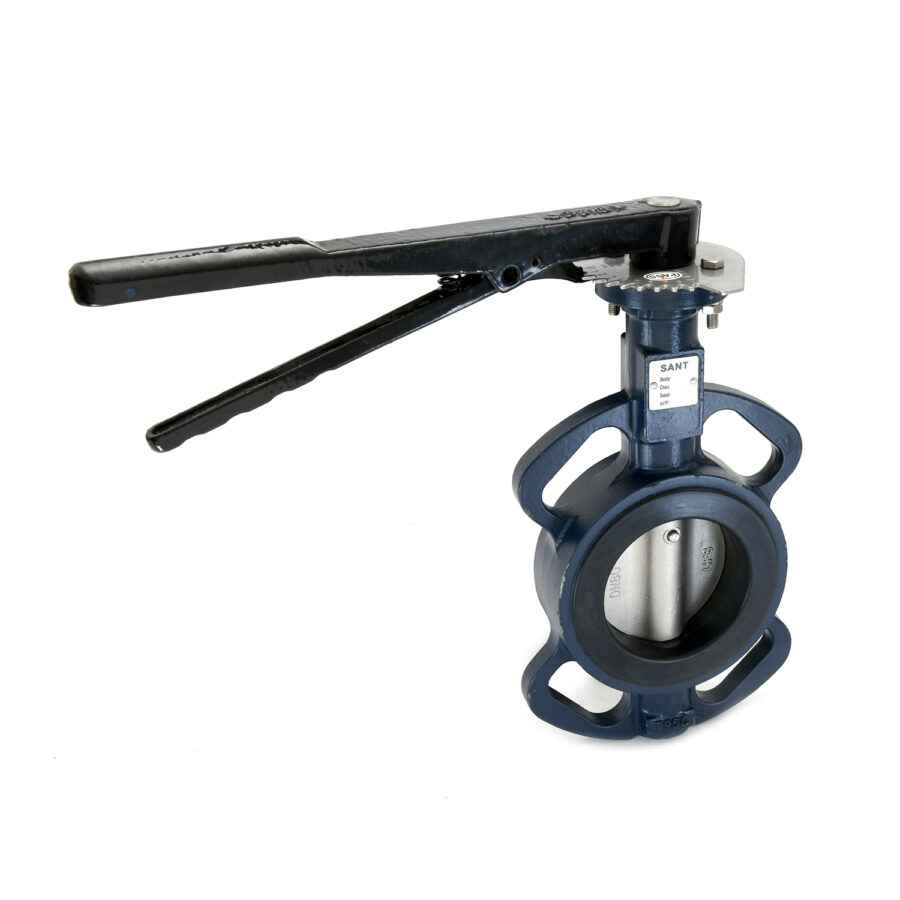

CR-28D Ductile Iron Butterfly Valve Wafer Type
$0.00
Product : ‘SANT’ Ductile Iron Butterfly Valve
Type of Pattern : Wafer Type
Pressure / Class / Rating : PN 25
Body Material cum Standard : SG Iron to IS:1865
Description : Wafer Type
Type of Seat : Nitrile / EPDM Lining
Type of Disc : SS Seat (CF8)
Trim : SS AISI-410
End Details : Suitable insertion between Flanges as per BS 10 Table D/E
or ASME B 16.1, Class 125
Note : Gear system will be provided for size above 150mm.
Body Test Pressure : 3.8MPa
Seat Test Pressure : 2.7MPa
Our Works’ Test Certificate is furnished with every supply.
