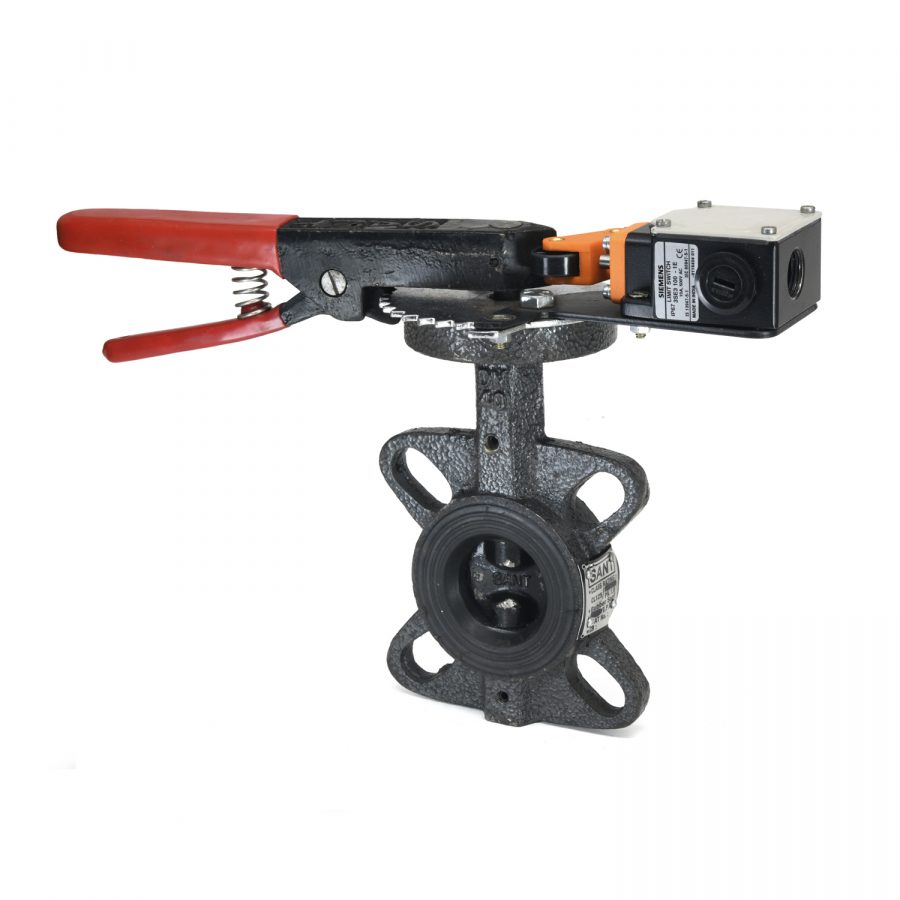

CIBFL C.I. Butterfly Valve with Limit Switch Wafer Type, PN 10/PN 16

CIBFL C.I. Butterfly Valve with Limit Switch Wafer Type, PN 10/PN 16

$0.00

Product Description HSN : 84818030

Product : Sant C.I. Butterfly Valve with Electric Actuator
Type of Pattern : Water Type
Pressure/Class/Rating : PN 10/PN 16
Body Material Cum Standard : CI to IS:210 Gr FG200
Type of Lining : EPDM
Type of Disc : SS CF 8
Stem : AISI-410
End Details : Suitable insertion between flanges
as ASME B 16.1 or Class-125

Testing & Certification

Ratings:

PN10
Body Test Pressure : 1.5MPa (218 Psig) Hyd
Seat Test Pressure : 1.1MPa (160 Psig) Hyd

PN16
Body Test Pressure : 2.4MPa (348 Psig) Hyd
Seat Test Pressure : 1.8MPa (261 Psig) Hyd

Categories: ,

Description

Materials

Components Materials Specifications
Bush PTFE
Body Cast Iron IS:210:Gr.FG200
Upper Stem SS AISI-410
Cover Plate Carbon Steel
Body Lining EPDM/Nitrile Rubber
Disc SS CF8
Lower Stem SS AISI-410
Locking Screw Steel
Fastners Steel
Lever IS:14329
Limit Switch

Dimensions (in mm)

Size F±2 D H LL
40 33 82 132 175
50 43 95 132 175
65 46 106 145 175
80 46 124 170 260
100 52 150 189 260
125 56 174 207 260
150 56 210 232 260
200 60 260 335 260

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
