Description
Materials
| Part No. | Part | Standard Specification |
|---|---|---|
| 1 | Body | EN-GJS-450-10 |
| 2 | O-Ring | NBR |
| 3 | Stub Shaft | SS431 |
| 4 | Disc | EN-GJS-450-10+EPDM |
| 5 | Hex Nut | Carbon Steel Zinc plated |
| 6 | Signal Gearbox | Body:EN-GJS-450-10 |
| 7 | Drive Shaft | SS431 |
| 8 | O-Ring | NBR |
| 9 | End Face Seal | EPDM |
Dimensions (in mm)
| Inch | mm | A+B+L | C | H | W |
|---|---|---|---|---|---|
| 2″ | 50 | 328 | 43 | 202.2 | 125 |
| 2.5″ | 65 | 346.5 | 46 | 202.2 | 125 |
| 3″ | 80 | 361 | 46 | 202.2 | 125 |
| 4″ | 100 | 393.5 | 52 | 202.2 | 125 |
| 5″ | 125 | 424.5 | 56 | 202.2 | 125 |
| 6″ | 150 | 458 | 56 | 215 | 225 |
| 8″ | 200 | 530 | 60 | 274 | 225 |
| 10″ | 250 | 591.5 | 68 | 274 | 225 |
| 12″ | 300 | 669 | 78 | 293.5 | 225 |
Notes

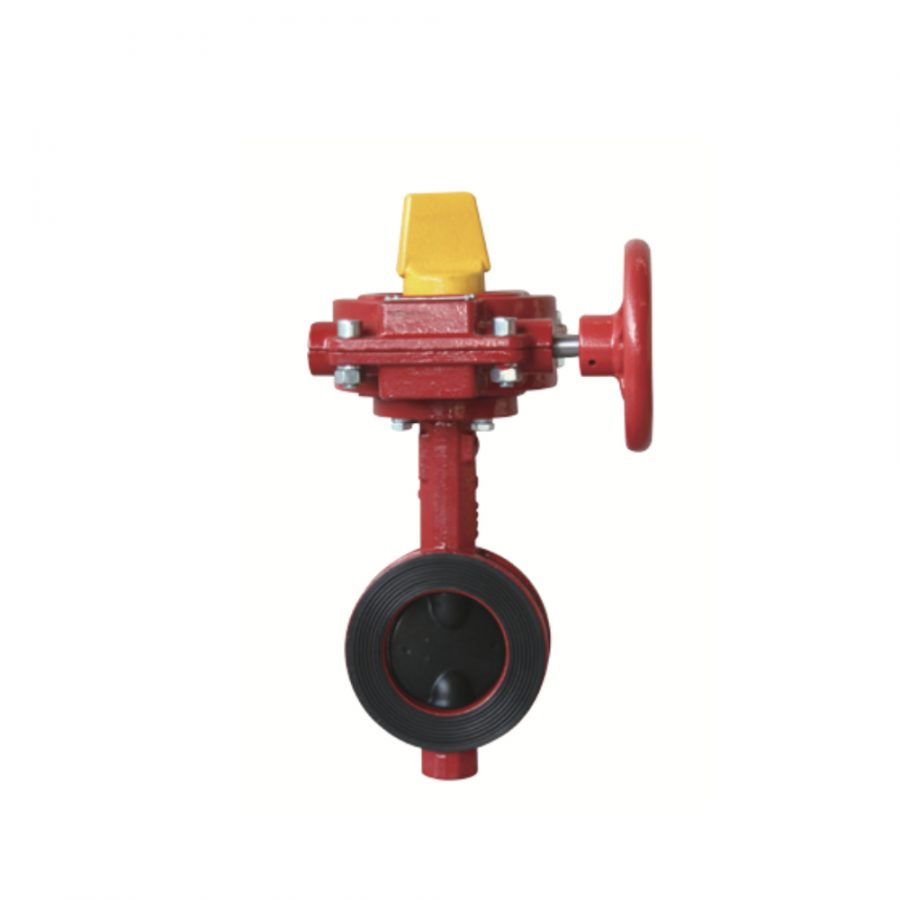

1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
