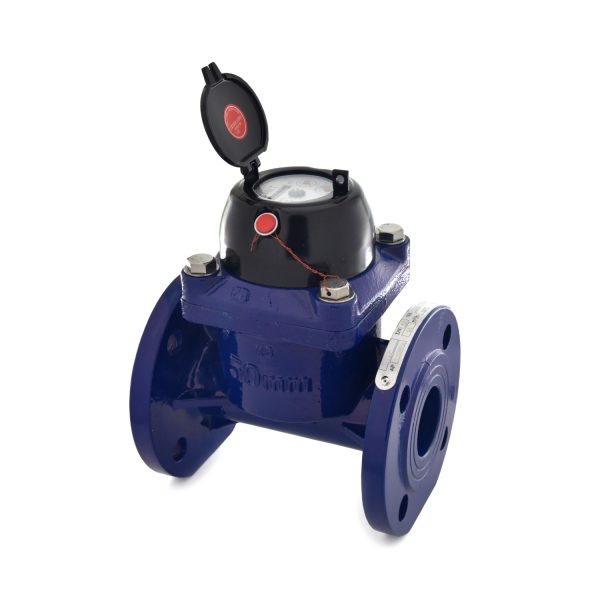

Description
Product Standard: ISO 4064 Class B
End Details: Flanges as per DIN:2533 RF (PN16) Drilled
- It is dismountable and it can be pulled out easily for repair.
- The recorder is sealed so that readings are clear.
- The pressure loss is small and it has big flow capacity.
- It can be installed vertically or horizontally.
- Pressure Rating: PN 1.6 (16 Bar) Hyd.
- Maximum Temperature: 45°C
- Working Pressure: 1.0 MPa Hyd.
- From minimum flow-rate (Qmin) inclusive, to transitional flow-rate (Qt),exclusive: ±5%
- From transitional flow-rate (Qt) inclusive, to overload flow-rate (Qs), exclusive: ±2%
| Size |
L |
H |
θD |
P |
N |
d |
| 50 |
200 |
252 |
165 |
125 |
4 |
18 |
| 65 |
200 |
262 |
185 |
145 |
4 |
18 |
| 80 |
225 |
280 |
200 |
160 |
8 |
18 |
| 100 |
250 |
290 |
220 |
180 |
8 |
18 |
| 125 |
250 |
310 |
250 |
210 |
8 |
18 |
| 150 |
300 |
333 |
285 |
240 |
8 |
22 |
| 200 |
350 |
386 |
340 |
290 |
12 |
22 |
| Size (mm) |
Overload flow-rate Qs (m³/h) |
Permanent flow-rate Qp (m³/h) |
Transiional flow-rate Qt (l/h) |
Minimum flow-rate Qmin (l/h) |
Minimum Reading Min (m³) |
Minimum Reading Max (m³) |
| 50 |
30 |
15 |
4.5 |
1.2 |
0.005 |
999999 |
| 65 |
50 |
25 |
7.5 |
2.0 |
0.005 |
999999 |
| 80 |
70 |
35 |
12 |
3.2 |
0.005 |
999999 |
| 100 |
120 |
60 |
18 |
4.8 |
0.005 |
999999 |
| 125 |
200 |
100 |
30 |
8 |
0.005 |
999999 |
| 150 |
270 |
150 |
45 |
12 |
0.05 |
9999999 |
| 200 |
400 |
290 |
75 |
20 |
0.05 |
9999999 |
