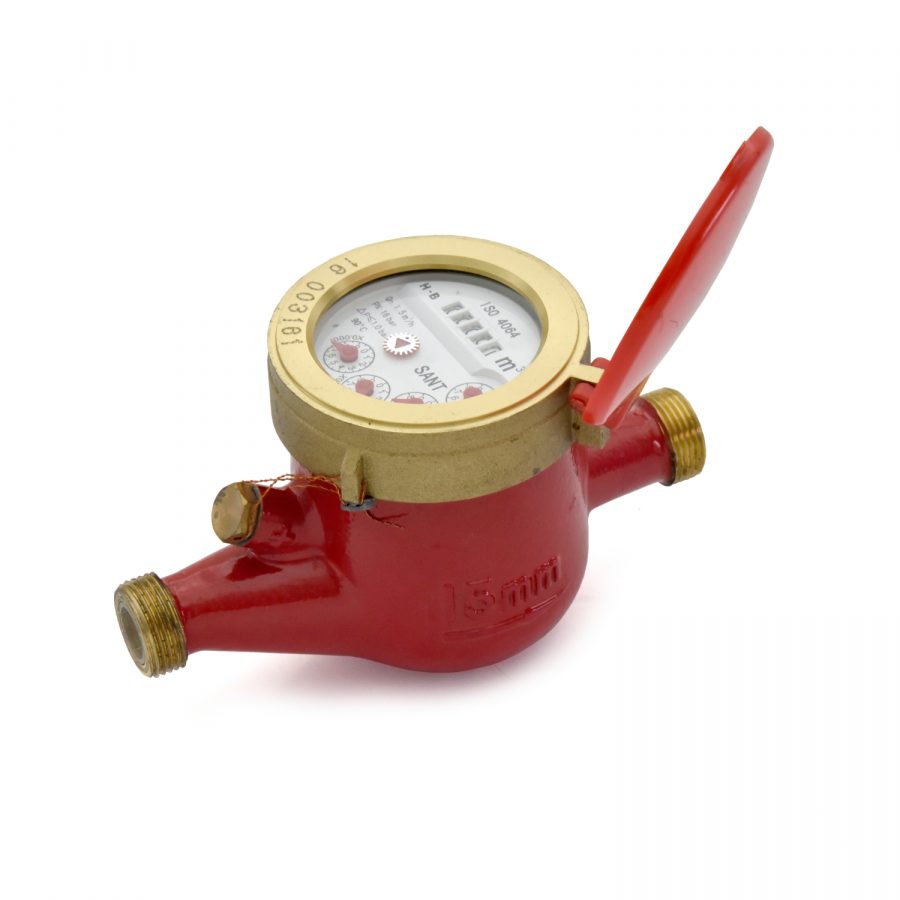

Type LXSG-15E-50E water meter for cold water is manufactured by using advanced technology, in which, the register device is combinated pointers and rolling counters which is convenient, clear and correct for reading as well as nice appearance.
The register system is designed by means of magnetic-drive, which is hermitically-sealed and completely separates the register system & water. It however can not be influence even if in pure water condition as well as corrosion of indicating dial. These water meter have high accuracy of measurement, steady error curve of flow rate. The performance is more advanced than existing ISO standard.
Working Conditions
Water Temperature < 50°C
Water Pressure < 1MPa
∆P < 0.1MPa
Accuracy
- From minimum flow-rate (Qmin) inclusive, to transitional flow-rate (Qt),exclusive: ±5%
- From transitional flow-rate (Qt) inclusive, to overload flow-rate (Qs), exclusive: ±2%
Application
- This water meter is used for measurement of total quantity of water passing through the pipeline.
- It is available for water flowing in a single direction.
Accuracy
Accuracy: ±0.5%
Dimensions (in mm)
| Size | L±2 | W (Approx.) | H (Approx.) | D Connecting Thread | Minimum Reading |
|---|---|---|---|---|---|
| 15 | 165 | 97 | 109 | G 3/4′′ B | 1.5 |
| 20 | 190 | 97 | 110 | G 1′′ B | 1.7 |
| 25 | 260 | 104 | 117 | G 1.1/4′′ B | 2.4 |
| 40 | 300 | 127 | 153 | G 2′′ B | 5.1 |
| 50 | 300 | 127 | 153 | G 2.1/2′′ B | 7.2 |
Technical Data
| Size (mm) | Min Flow Rate (L/h) | Max Flow Rate (L/h) | L (mm) | θD (mm) | K (PCD) (mm) | n x d (mm) | n x d (mm) |
|---|---|---|---|---|---|---|---|
| 15 | B | 3 | 1.5 | 120 | 30 | 0.0001 | |
| 20 | B | 5 | 2.5 | 200 | 50 | 0.0001 | |
| 25 | B | 7 | 3.5 | 280 | 70 | 0.0001 | 99999 |
| 40 | B | 20 | 10 | 800 | 200 | 0.001 | |
| 50 | B | 30 | 15 | 3000 | 450 | 0.001 |
