Product Description

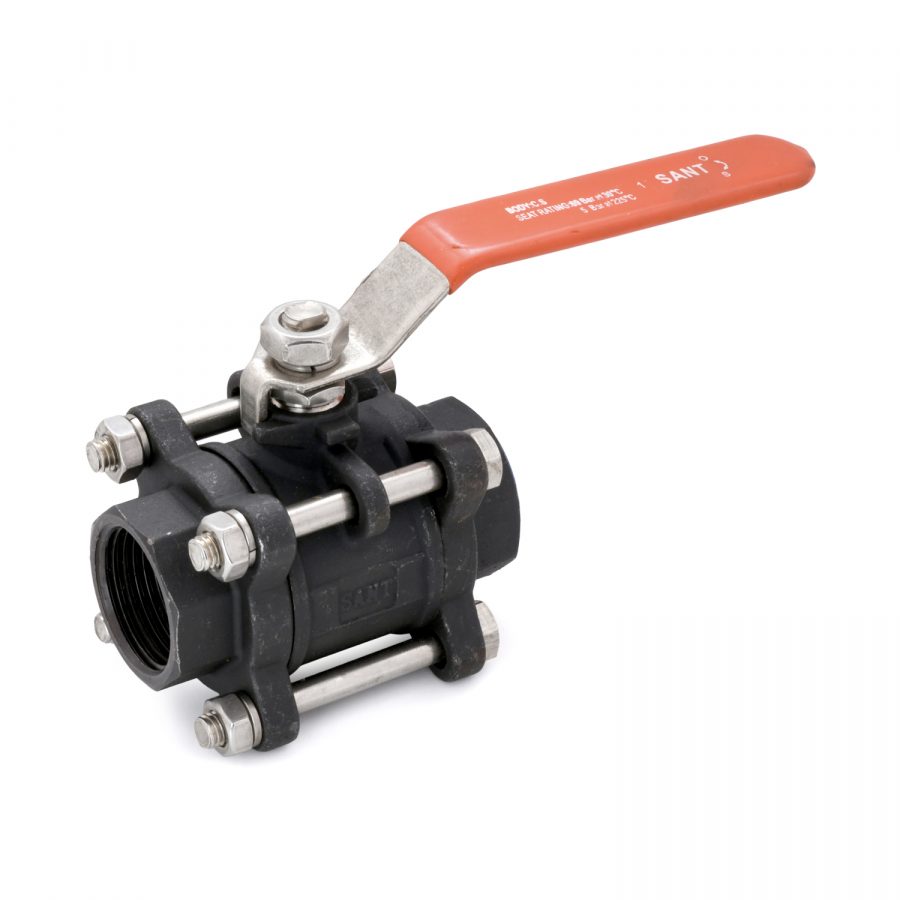

Product : ‘SANT’ Cast  Steel Ball Valve
Pressure Temperature Rating : 69 Barg at 30°C, 5 Bar at 225°C
Body Material cum Standard : CCS (ASTM A 216 Gr. WCB)
Description : Three piece design, Lever Operated
Type of Seat : Renewable PTFE with Carbon Filled
Trim : Stem: SS AISI-410, Ball: SS AISI-304/ CF8
Gland Packing : PTFE
End Details : Screwed female BSP Taper threads

Testing & Certification

Body Test Pressure : 104 Barg Hyd.
Seat Test Pressure : 76 Barg Hyd.

Our Works’ Test Certificate is furnished with every supply.

Categories: ,

Description

Materials

P.No. Components Materials No. Specifications
1 Body 1 C.C.S ASTMA 216 Gr WCB
2 Connector 2 C.C.S ASTMA 216 Gr WCB
3 Seat 2 Carbon Filled PTFE –
4 Ball 1 SS AISI-304
5 Stem 1 SS AISI-410
6 Gland Seal To Suit Carbon Filled PTFE –
7 Gland 1 SS AISI-410
8 Lever 1 Carbon Steel GALVANISED, PVC SLEEVE
9 Bolt & Nuts To Suit SS –

Dimensions (in mm)

Nominal Size Nominal Size (Inches) F LL (Approx.)
15 1/2 70±2 105
20 3/4 80±2 105
25 1 88±2 125
32 1.1/4 102±2 145
40 1.1/2 110±2 156
50 2 132±2 156

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
