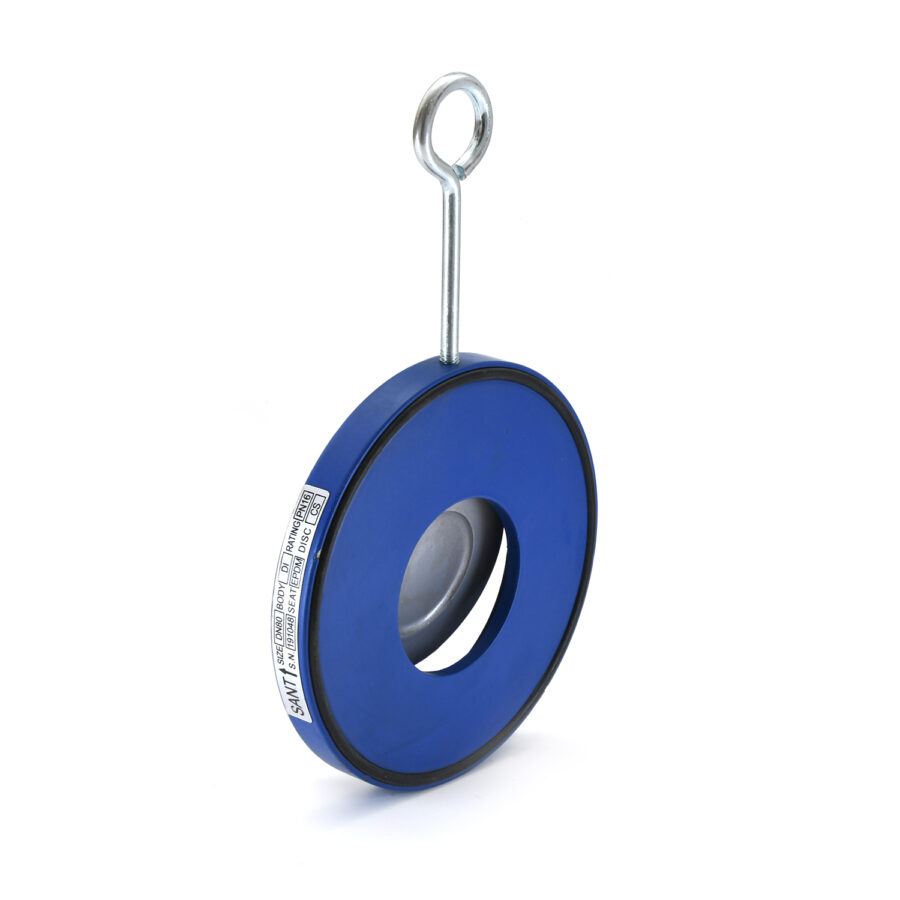

SP Single Plate Wafer Type Check Valve Wafer Type

Product Description HSN : 84813000

Product : Sant Single Plate Wafer Check Valve
Body Material cum standard : Ductile Iron
Pressure/Class /Rating : PN-16
Product Description : Single Plate Wafer Check Valve
Type of Seat : EPDM
Type of Disc : Carbon Steel + Ni Plate
End Details : Wafer Type

Testing & Certification

Body Test Pressure : 24kg/cm²g (Hyd.)
Seat Test Pressure : 16kg/cm²g (Hyd.)

For more enquiry or purchase contact us:

Description

Description

Materials

Components	Materials	Specifications
Body	Ductile Iron (Epoxy Coated)	–
Disc	Carbon Steel (Epoxy Coated)	–
Retaining Washer	SS	–
Retaining Screw	SS	–
Seat Ring	Rubber (EPDM)	–
Lifting Eye Bolt	Carbon Steel (Galvanized)	–
Flange ‘O’ Ring	Rubber (EPDM)	–

Dimensions (in mm)

Size	ØD	F±2	B
50	96	14	32
65	108	14	40
80	129	14	54
100	160	18	70
125	192	18	92
150	216	20	114
200	273	22	154

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
