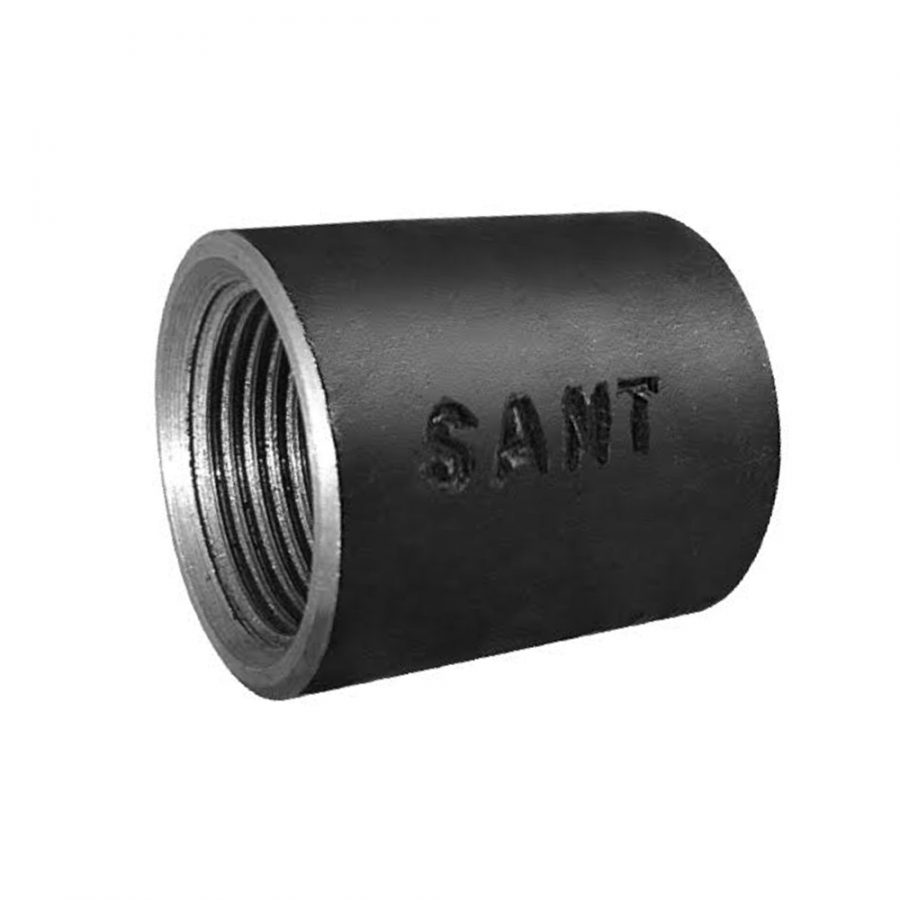

Description
Dimensions (in mm)
| Nominal Size of Outlet | Minimum Outside Diameter (A) | Minimum Length (B) |
|---|---|---|
| 8 | 18.5 | 27 |
| 10 | 22 | 28 |
| 15 | 27 | 37 |
| 20 | 32.5 | 39 |
| 25 | 39.5 | 46 |
| 32 | 49 | 51 |
| 40 | 56 | 51 |
| 50 | 68 | 60 |
Product Standard
As per IS:1239 (PART2): 1992 Screwed BSP Ends.
The carbon steel used in drop forged steel pipe fittings contains sulphur and phosphorus not exceeding 0.06% each.
End Connections
Screwed Female Ends conform to BSP as per BS21 / IS:554.
Other types of threads i.e. NPT can be given on request.
Test Pressure
IS:1239 (PART2) 1992-Pipe Fittings are tested to 1000 psig. (Hyd.)
| Nominal Size of Outlet | Minimum Outside Diameter (A) | Minimum Length (B) |
|---|---|---|
| 8 | 18.5 | 27 |
| 10 | 22 | 28 |
| 15 | 27 | 37 |
| 20 | 32.5 | 39 |
| 25 | 39.5 | 46 |
| 32 | 49 | 51 |
| 40 | 56 | 51 |
| 50 | 68 | 60 |
