Description
Product Description HSN : 84818090

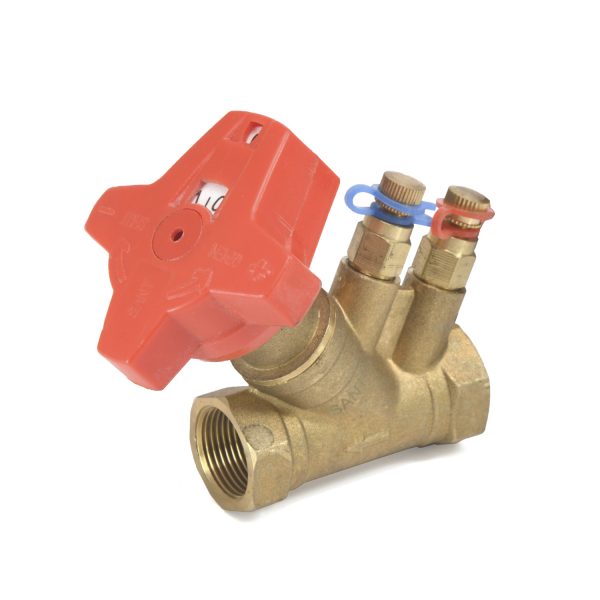

Product : Sant Brass Balancing Valve
Body Material cum standard : Forged Brass IS;6912-FLB
Product Description : Precise Balancing, Double Regulation Type
Disc(Cartridge) : Brass
Stem : Brass
Bonnet : Forged Brass IS;6912-FLB
Regulating Wheel : ABS(Plastic)
Testing & Certification
Maximum Working Pressure : 1.6 MPa Hyd. (232Psig)
Body Test Pressure : 2.4 MPa Hyd. (348Psig)
Maximum Working Temperature : 150ºC
Materials
| Components | Materials | Specifications |
|---|---|---|
| Body | Forged Brass | IS;6912-FLB |
| Disc (Cartridge) | Brass | – |
| Stem | Brass | – |
| Bonnet | Forged Brass | IS;6912-FLB |
| Regulating Wheel | ABS (Plastic) | – |
Dimensions (in mm)
| Size | F | ØW |
|---|---|---|
| 20 | 78 | 75 |
| 25 | 102 | 75 |
| 32 | 105 | 75 |
| 40 | 120 | 75 |
| 50 | 140 | 75 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
