Description
Salient Features
- Eliminates Theft Problem Being Low Resale Value.
- No Corrosion As Highly Corrosion Resistant.
- Excellent Finish Due To Investment Casting Robust
- Construction For Safety
- Excellent Durability & Low Maintenance
- Pull Out Type/ Quick Release Lug For Easy
- Operation

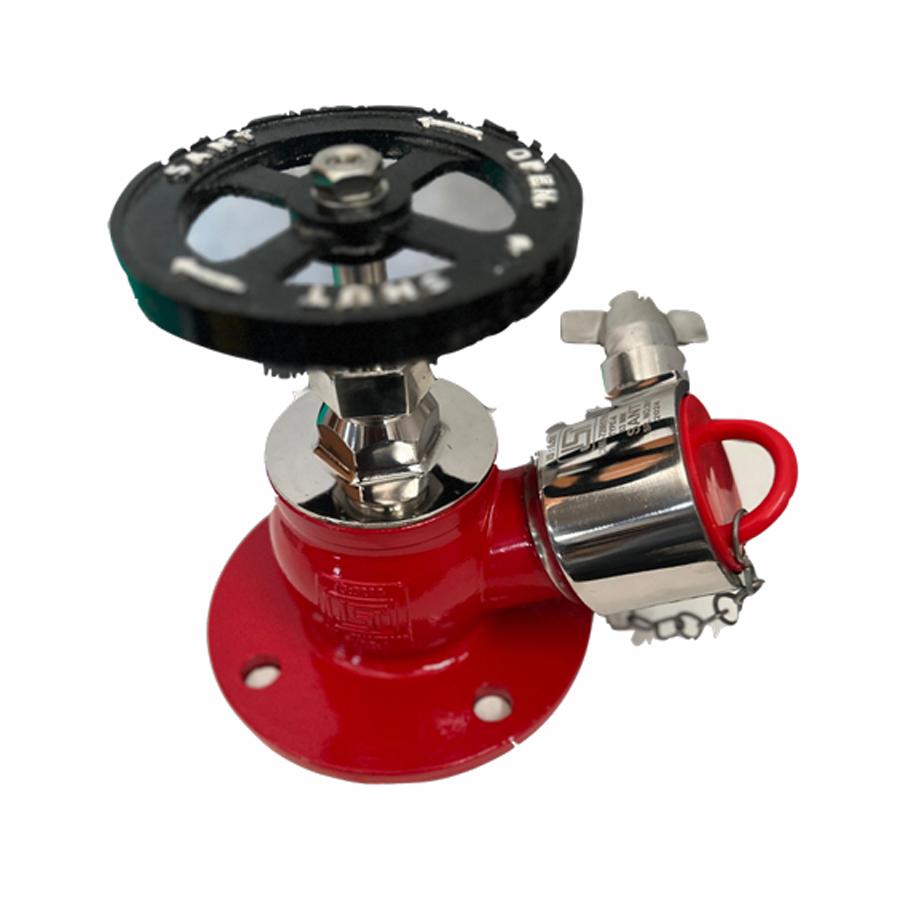

Product Description
Size : 63mm
Material : Stainless Steel
Inlet : 75mm NB Flanged as per IS: 1538
Outlet : Standard 63mm Female Instantaneous
Approval : IS: 5290 Type A ISI Marked
Testing
Seat Test : 14 kg / cm2 for 2.5 minutes
Body Test : 21 kg / cm2 for 2.5 minutes
Flow Test : 900 LPM @ 7 kg / cm2
Working Pressure : Up to 10kg/cm2
Product Specifications
- BODY : SS 304 (IS 3444 GR 1)
- SPINDLE : SS (IS 6603)
- BONNET : SS 304 (IS 3444 GR 1)
- GLAND NUT : SS 304 (IS 3444 GR 1)
- FEMALE INST. OUTLET : SS 304 (IS 3444 GR 1)
- TWIST TYPE LUG : SS 304 (IS 3444 GR 1)
- HAND WHEEL : CAST IRON ( IS 210)
- Washer : Rubber IS : 937 Type A
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
