Description

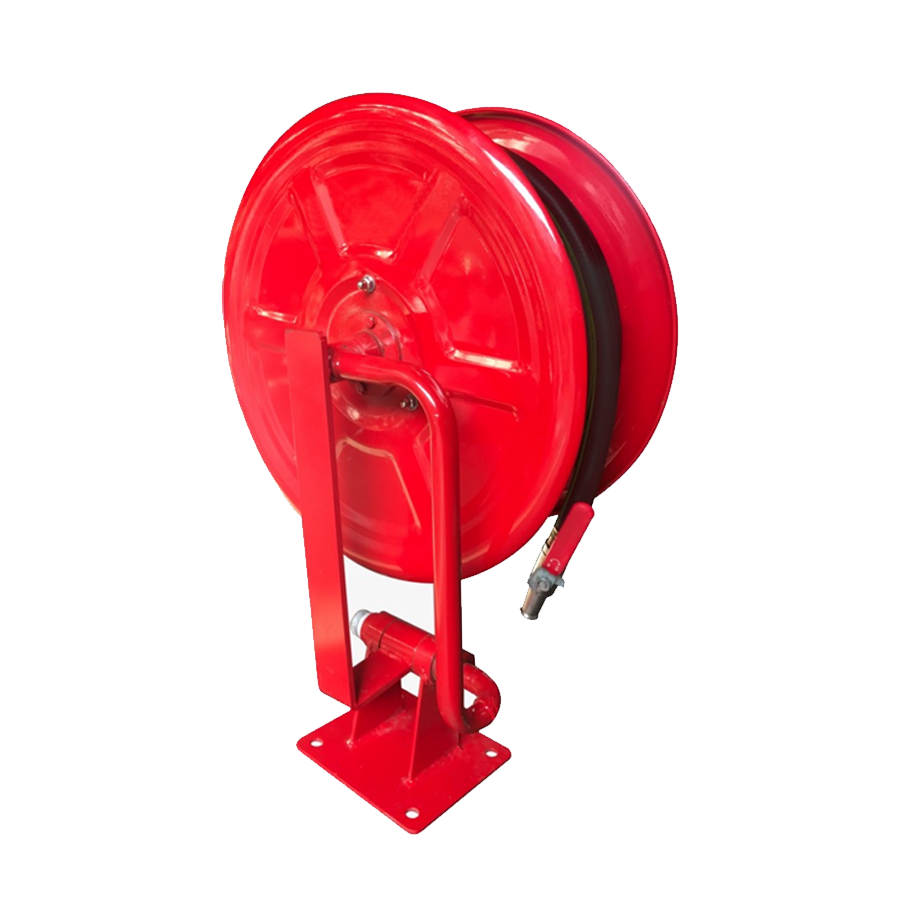

Product Description
Size : 19mm
Inlet : 25mm Threaded
Outlet : 19mm x 30mtr Hose Reel Hose with Shut off Nozzle
Reference Standard : IS : 884
Testing
Hydrostatic Pressure Test : 21 kg / cm2 for 2.5 minutes ( For Hose Reel Drum Only)
Performance Requirements : 6 Meter Horizontal Throw at 7kg / cm2 with 40 LPM Water
Working Pressure : Up to 7kg / cm2
Product Specifications
- Hub : MS IS : 513
- Side Rim : MS IS : 513
- Swivel Joint : Metal Plated
- Hose Reel Tubing : Thermoplastic Hose as per IS :
- Shut Off Nozzle : Stainless Steel
- 12585 Type – 2 (ISI Marked)
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
