Description
Product Description HSN : 84811000

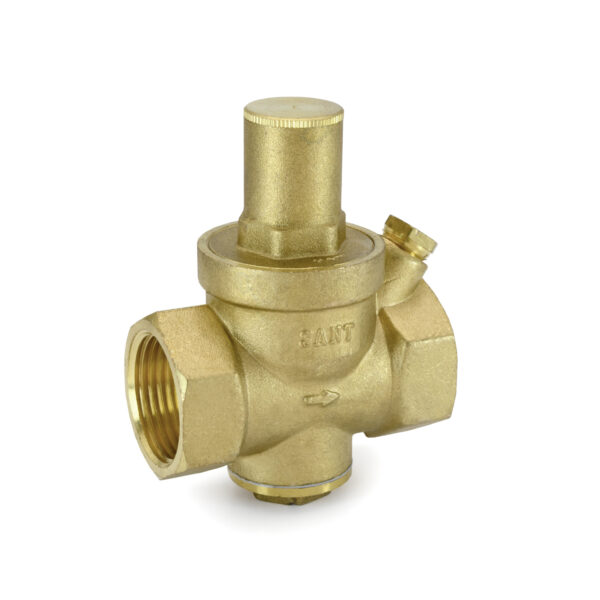

Product : Sant Brass Pressure Reducing Valve
Body Material cum Standard : Forged Brass
Description : Screwed in Bonnet Spring loaded
Fluid : Water, Compressed Air
Maximum Inlet Pressure P1 (bar) : 16 barg
Outlet Pressure : P2 Range (Bar) 1:6
Testing & Certification
Body Test Pressure : 16 barg Hyd. (232Psig. Hyd.)
Materials
| Components | Materials | Specifications |
|---|---|---|
| Bottom Cover | Brass | – |
| Body | Forged Brass | – |
| Disc | Rubber | – |
| Strainer (Screen) | SS | – |
| ‘O’ Ring | Rubber | – |
| Piston | Brass | – |
| Bonnet | Forged Brass | – |
| Spring | Spring Steel | – |
| Adjusting Screw | Brass | – |
| Cover | Brass | – |
| Gauge Gasket | P.T.F.E | – |
Dimensions (in mm)
| Size | L | W | H |
|---|---|---|---|
| 15 | 74 | 22 | 93 |
| 20 | 74 | 22 | 93 |
| 25 | 75 | 24 | 100 |
| 32 | 84 | 27 | 122 |
| 40 | 110 | 36 | 160 |
| 50 | 118 | 36 | 160 |
| 65 | 138 | 42 | 202 |
| 80 | 180 | 54 | 252 |
| 100 | 190 | 54 | 254 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
