Product Standard
As per IS:1239 (PART2): 1992 Screwed BSP Ends.
The carbon steel used in drop forged steel pipe fittings contains sulphur and phosphorus not exceeding 0.06% each.
End Connections
Screwed Female Ends conform to BSP as per BS21 / IS:554.
Other types of threads i.e. NPT can be given on request.
Test Pressure
IS:1239 (PART2) 1992-Pipe Fittings are tested to 1000 psig. (Hyd.)

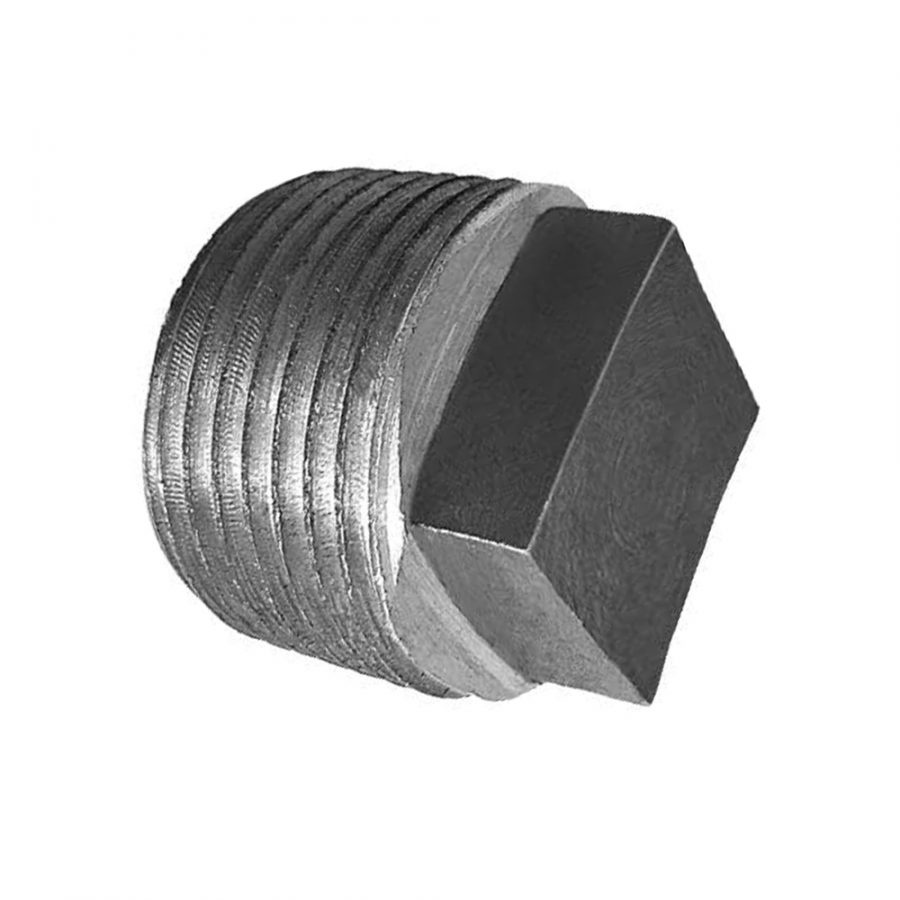

| Nominal Size of Outlet | Minimum Length of Thread for Basic gauge (L) | Approx Size of Square (S) | Approx Height of Square (H) | Maximum Internal Diameter (D) |
|---|---|---|---|---|
| 6 | 6.5 | 6 | 6 | – |
| 8 | 9.7 | 9 | 6 | – |
| 10 | 10.1 | 11 | 10 | – |
| 15 | 13.2 | 13 | 10 | – |
| 20 | 14.5 | 14 | 12 | – |
| 25 | 16.8 | 17 | 12 | 22 |
| 32 | 19.1 | 22 | 16 | 31 |
| 40 | 19.1 | 27 | 16 | 33 |
| 50 | 23.4 | 32 | 19 | 48 |
