Description
Product Description HSN : 84814000

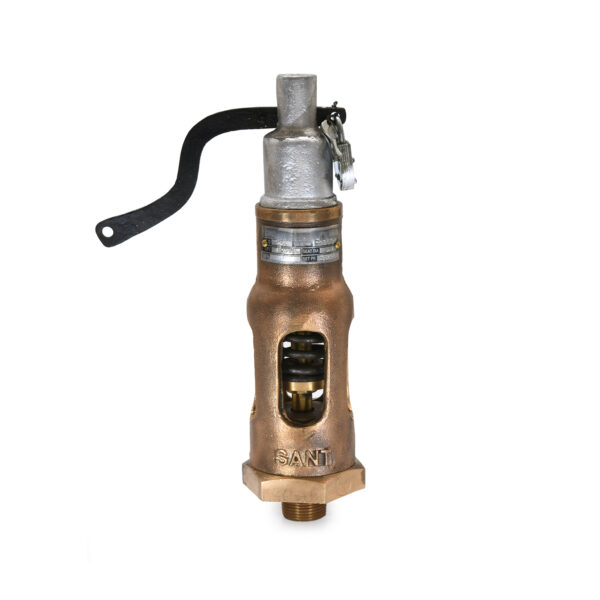

Product : ‘SANT’ Bronze Safety Valve
Body Material cum Standard : Bronze IBR 282(a)(iv) Gr.B
Description : Pop-Type open discharge
Type of Seat : Integral
Type of Disc : Renewable Disc
Trim : Cu-Alloy
End Details : Inlet screwed male BSP Taper threads to BS 21
Testing & Certification
Body Test Pressure : 500 Psig.Hyd.
Working Pressure : Max.BOP 250 Psig.(17.58Kg/cm²)
Maximum Working Temperature: 225°C (435°F)
Note : Please advice set pressure while placing order
Test Certificate in Form lll-C as per IBR is furnished with every supply.
Application
Materials
| Components | Materials | Specifications |
|---|---|---|
| Body, Spring Chamber, Valve Disc, Blow-down Ring, Spring Discs & Adjusting Screw | Bronze | IBR 282(a)(iv) Gr.B |
| Spindle, Check Nuts & Screws | Forged Brass | IS:6912 FLB |
| Spring | Spring Steel | IBR 307 to 314 |
| Cap | Aluminium Casting | — |
| Easing Lever | Mild Steel | — |
Dimensions (in mm)
| Nominal Size | Nominal Size (Inches) | ∅A (Inches) | B (Inches) | H (Approx.) |
|---|---|---|---|---|
| 15 | 1/2 | 1/2 | 3/4 | 290 |
| 20 | 3/4 | 3/4 | 1 | 325 |
| 25 | 1 | 1 | 1.1/4 | 325 |
| 40 | 1.1/2 | 1.1/2 | 2 | 420 |
| 50 | 2 | 2 | 2.1/2 | 460 |
| BSP (T) |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
