Description
Product DescriptionHSN : 84818030

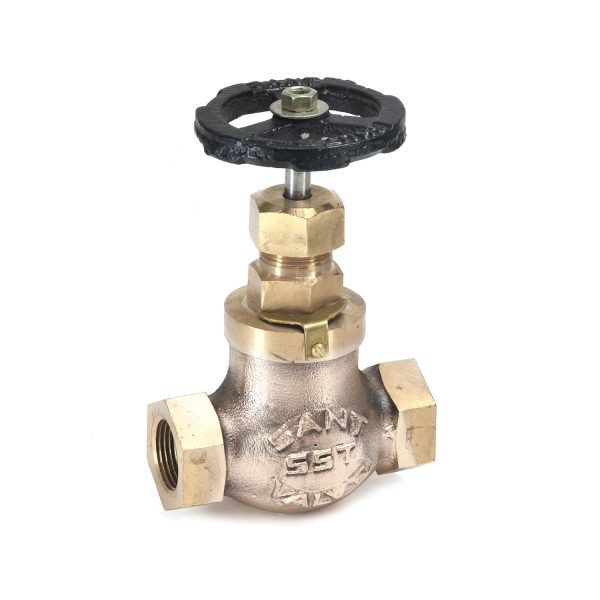

Product : ‘SANT’ Bronze Globe Steam Stop Valve
Type of Pattern : Straight Type
Body Material cum Standard : Bronze IBR 282(a)(iv) Gr.B
Description : Screwed in Bonnet, Inside Screw, Rising Stem
Type of Seat : Renewable Seat
Type of Disc : Renewable Disc
Trim : SS AISI-410
Gland Packing : Expanded Pure Flexible Graphite
End Details : Screwed female BSP Taper threads to BS 21
Testing & Certification
Body Test Pressure : 500 Psig.Hyd.
Seat & Back Seat Test Pressure : 500 Psig. Hyd. & 250 Psig. Steam
Working Pressure : Max.BOP 250 Psig.(17.58Kg/cm²)
Maximum Working Temperature: 225°C (435°F)
Test Certificate in Form lll-C as per IBR is furnished with every supply.
Application
Materials
| Components | Materials | Specifications |
|---|---|---|
| Body, Bonnet, Disk Nut, Gland & Gland Nut | Bronze | IBR 282(a)(iv) Gr.B |
| Body Seat Ring, Valve Disc & Spindle | Stainless Steel | AISI-410 |
| Handwheel | C.I. / D.I. | IBR 86 to 93 Gr.A |
| Gland Packing | Expanded Pure Flexible Graphite | — |
| Locking Washer | Brass Sheet | — |
| Washer & Nut for Handwheel | Mild Steel | — |
Dimensions (in mm)
| Nominal Size | Nominal Size (Inches) | F | H (Approx.) | ∅W(Approx.) |
|---|---|---|---|---|
| 8 | 1/4 | 75±1.5 | 111 | 70 |
| 10 | 3/8 | 75±1.5 | 115 | 70 |
| 15 | 1/2 | 83±1.5 | 125 | 70 |
| 20 | 3/4 | 95±1.5 | 125 | 70 |
| 25 | 1 | 111±1.5 | 152 | 90 |
| 32 | 1.1/4 | 133±1.5 | 172 | 90 |
| 40 | 1.1/2 | 152±1.5 | 181 | 127 |
| 50 | 2 | 178±1.5 | 215 | 144 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
