Description
Materials
| Part No. | Part | Standard Specification |
|---|---|---|
| 1 | Valve Body | EN-GJS-450-10 |
| 2 | Hinge Pin | SS420 |
| 3 | Spring | SS304 |
| 4 | Eye Bolt | Carbon Steel Zinc Plated |
| 5 | Disc | DN50-100 SS304; DN150-300 EN-GJS-450-10 |
| 6 | Disc Sealing Ring | EPDM |
| 7 | Seat Ring | ASTM B62 C83600 (Pressed Fit) |
| 8 | Plug | Malleable Iron Galvanized |
| 9 | Plug | Malleable Iron Galvanized |
| 10 | Plug | Malleable Iron Galvanized |
| 11 | Plug | Malleable Iron Galvanized |
| 12 | Bolt | SS304 |
| 13 | Washer | SS304 |
| 14 | Nut | SS304 |
Dimensions (in mm)
| Inch | mm | L | D1 | D2 | B | C |
|---|---|---|---|---|---|---|
| 2″ | 50 | 171 | 57.15 | 60.3 | 7.93 | 15.88 |
| 2.5″ | 65 | 184 | 72.26 | 76.1 | 7.93 | 15.88 |
| 3″ | 80 | 197 | 84.94 | 88.9 | 7.93 | 15.88 |
| 4″ | 100 | 210 | 110.08 | 114.3 | 9.53 | 15.88 |
| 5″ | 125 | 248 | 135.48 | 139.7 | 9.53 | 15.88 |
| 6″ | 150 | 324 | 160.9 | 165.1 | 9.53 | 15.88 |
| 8″ | 200 | 371 | 214.4 | 219.1 | 11.13 | 19.05 |
| 10″ | 250 | 457 | 268.28 | 273 | 12.7 | 19.05 |
| 12″ | 300 | 535 | 318.29 | 323.9 | 12.7 | 19.05 |
Notes

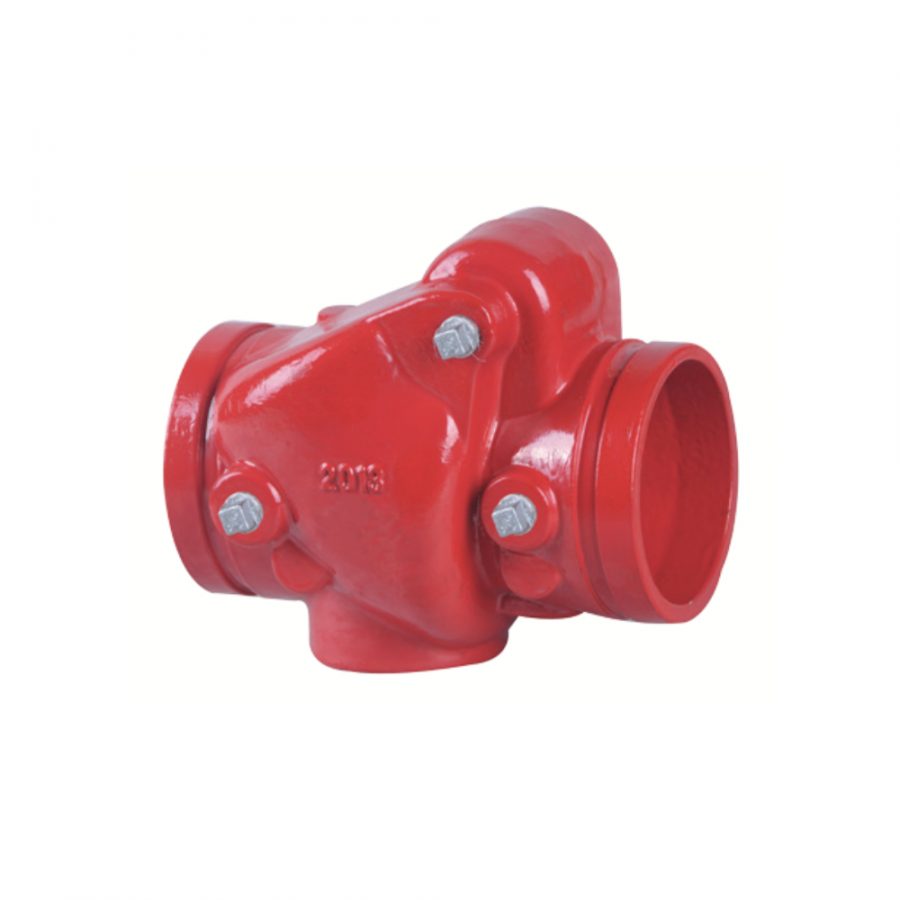

1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
