Description
Product Description HSN : 84818030

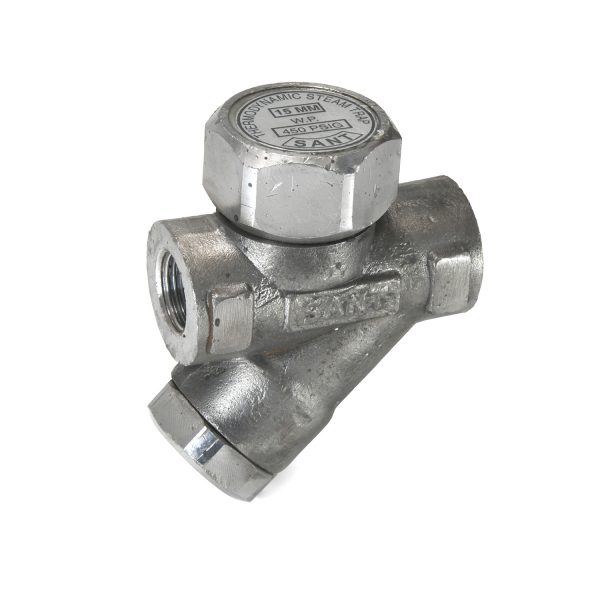

Product : ‘SANT’ Forged S.S.Thermodynamic Steam Trap
Body Material cum Standard : FSS (AISI-410)
Description : Thermodynamic Type with inbuilt strainer
Trim : SS AISI-410
End Details : Screwed Female BSP Taper Threads to BS 21
Testing & Certification
Body Test Pressure : 900 Psig Hyd.
Working Pressure : Max. BOP 450 Psig. (31.65Kg/cm²)
Maximum Working Temperature : 400°c
Test Certificate in Form lll-C as per IBR is furnished with every supply
Materials
| Components | Materials | Specifications |
|---|---|---|
| Body | Forged Stainless Steel | AISI-410 |
| Cover, Disc | Stainless Steel | AISI-410 |
| Strainer | Stainless Steel | AISI-304 / AISI-410 |
| Name Plate | Aluminium Sheet | IS:2676 |
Dimensions (in mm)
| Nominal Size | Nominal Size (Inches) | F | H |
|---|---|---|---|
| 15 | 1/2 | 78±1.5 | 60 |
| 20 | 3/4 | 78±1.5 | 60 |
| 25 | 1 | 96±1.5 | 71 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
