Description
Product Description HSN : 84813000

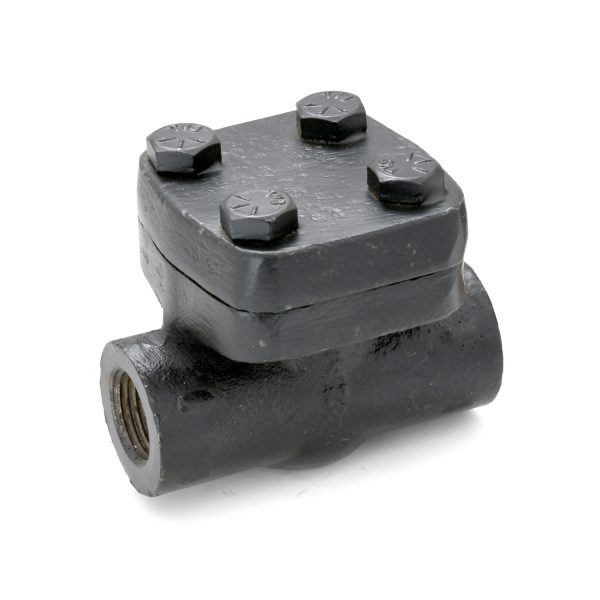

Product : Sant Forged Steel Horizontal Check Valve
Product Standard : Conforming to BS-5352/API 602
Pressure Class Rating : Class 1500
Body Material cum standard : FCS (A 105)
Product Description : Bolted Cover
Type of Seat : Renewable Seat
Type of Disc : Renewable Disc
Trim : SS AISI-410
End Details : Socket Welded ends as per ASME B 16.11
Testing & Certification
Body Test Pressure : 384 barg Hyd.
Seat Test Pressure : 281 barg Hyd., 6.9 barg (100 Psig) AIR
Our Works’ Test Certificate is furnished with every supply.
Dimensions (in mm)
| Nominal Size | Nominal Size (Inches) | F | H (Approx) | B | A |
|---|---|---|---|---|---|
| 15 | 1/2 | 88±2 | 65 | 21.70 | 14 |
| 20 | 3/4 | 100±2 | 80 | 27.05 | 14 |
| 25 | 1 | 130±2 | 100 | 33.80 | 14 |
| 40 | 1.1/2 | 171±2 | 125 | 48.65 | 15 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
