Description
Product DescriptionHSN : 84818090

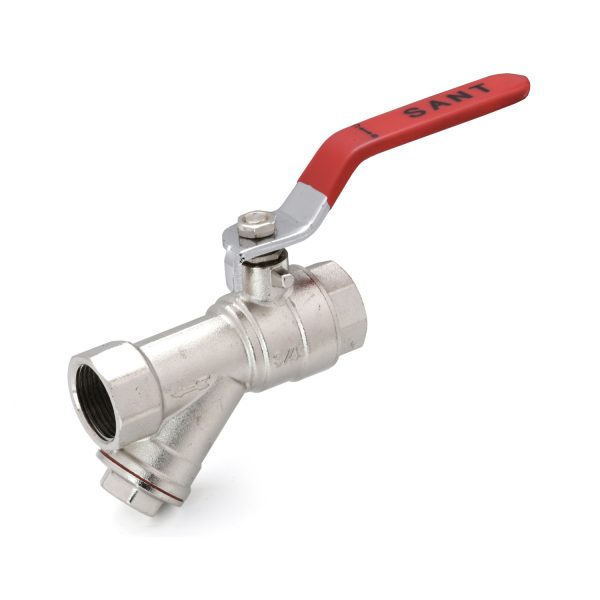

Product : Sant Forged Brass Ball Valve with Y Strainer
Pressure Rating : PN-25
Body Material cum standard : Forged Brass
Product Description : Two piece design with Inbuild Stainer
End Details : Screwed female BSP Parallel Threads
Testing & Certification
Body Test Pressure : 40kg/cm²g (Hyd.)
Working Pressure : 25kg/cm²g (Hyd.)
Materials
| Components | Materials | Specifications |
|---|---|---|
| Nut | S.S. | – |
| Gland | Brass | – |
| Gland Seal | PTFE | – |
| Body of Ball Valve | Forged Brass | – |
| Seat | PTFE | – |
| Ball | Brass | – |
| Stem | Brass | – |
| Strainer Body | Forged Brass | – |
| Lever | M.S (Powder Coated) | – |
Dimensions (in mm)
| Size | F | H (Approx.) | LL (Approx.) |
|---|---|---|---|
| 15 | 78 | 52 | 90 |
| 20 | 94 | 58 | 105 |
| 25 | 95 | 58 | 105 |
| 32 | 112 | 65 | 132 |
| 40 | 130 | 80 | 145 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
