Description
Materials
| Components | Materials | Specifications |
|---|---|---|
| Nut | S.S. | – |
| Gland | Brass | – |
| Gland Seal | PTFE | – |
| Connector | Forged Brass | IS:6912 FLB |
| Seat | PTFE | – |
| Ball | Forged Brass | IS:6912 FLB |
| Stem | Brass | – |
| Body | Forged Brass | IS:6912 FLB |
| Lever | Aluminum | – |
Dimensions (in mm)
| Nominal Size | Nominal Size (Inches) | F±2 | LL (Approx.) |
|---|---|---|---|
| 8 | 1/4 | 40 | 105 |
| 10 | 3/8 | 45 | 105 |
| 15 | 1/2 | 50 | 105 |
| 20 | 3/4 | 56 | 128 |
| 25 | 1 | 66 | 128 |
| 32 | 1 1/4 | 75 | 170 |
| 40 | 1 1/2 | 88 | 170 |
| 50 | 2 | 105 | 210 |
| 65 | 2 1/2 | 124 | 225 |
| 80 | 3 | 148 | 225 |
| 100 | 4 | 212 | 240 |
Notes

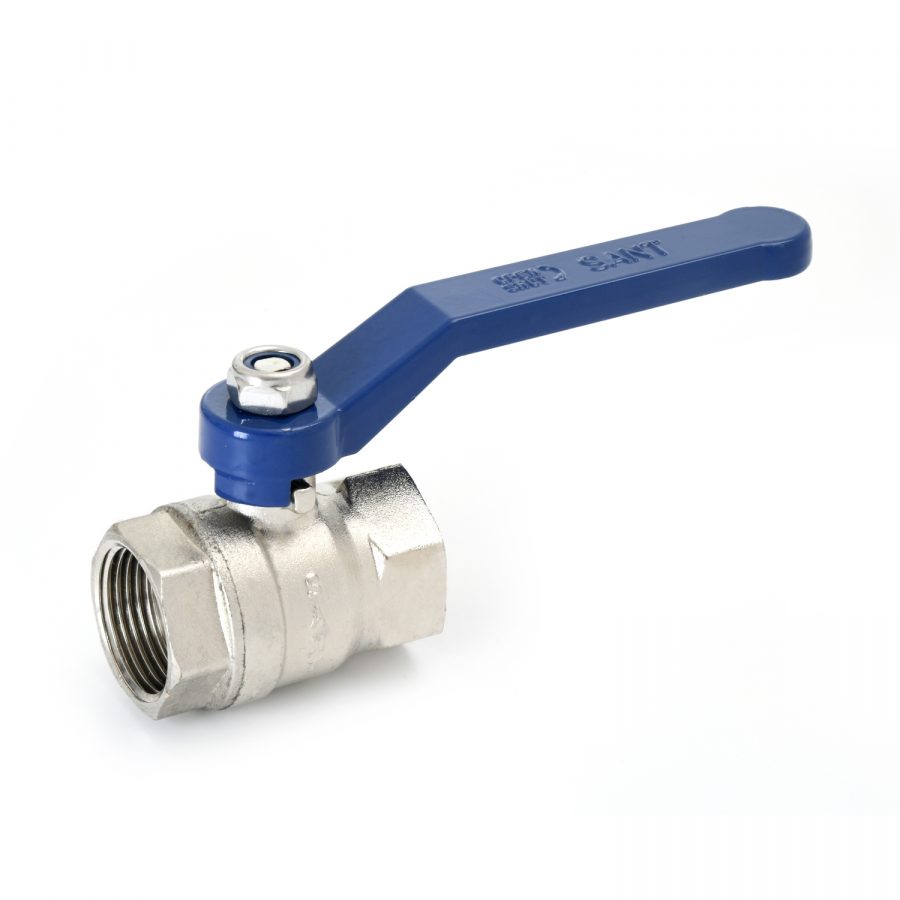

1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
