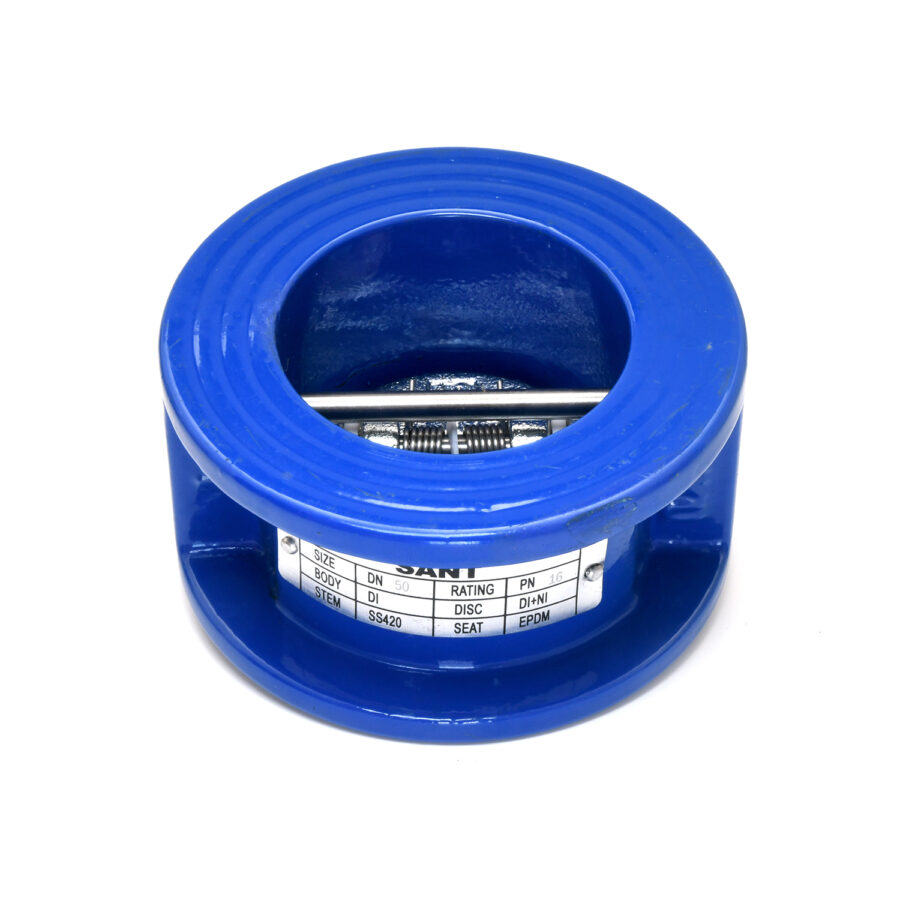

DP Dual Plate Water Check Valve

Product Description HSN : 84813000

Product : Sant Dual Plate Wafer Check Valve
Pressure Rating : PN-16
Body Material cum Standard : Cast Iron
Pressure Description : Wafer Type Spring Loaded
Type of Seat : EPDM Rubber Lining
Type of Disc : Ductile Iron Disc
Trim : Spring & Pins SS 304
End Details : Wafer type suitable for clamping between flanges as per ASME B 16.5 Class-150

Testing & Certification

Body Test Pressure : 24 Kg/cm²
Seat Test Pressure : 16 Kg/cm²

For more enquiry or purchase contact us:

Description

Description

Materials

Components	Materials	Specifications
Body	Cast Iron	—
Body Seat	Rubber	E.P.D.M
Disc	D.I (SG Iron)	—
Hinge Pin	SS	AISI-420
Stop Pin	SS	AISI-420
Spring	Spring Steel	AISI-304
Bush/Bearing	P.T.F.E	—
Plug	SS	AISI-410

Dimensions (in mm)

Size	F±2	D
50	54	107
65	54	127
80	57	142
100	64	164
125	70	192
150	76	218
200	95	273
250	108	328
300	145	378
350	185	438
400	188	487

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
