Description
Materials
| Part No. | Part | Standard Specification |
|---|---|---|
| 1 | Valve Body | EN-GJS-450-10 |
| 2 | Disc | SS316 |
| 3 | Stem | SS420 |
| 4 | Spring | SS304 |
| 5 | Rubber Seat | EPDM |
Dimensions (in mm)
| Inch | mm | L | D | D1 | D2 |
|---|---|---|---|---|---|
| 2″ | 50 | 54 | 106 | 68 | 46 |
| 2.5″ | 65 | 60 | 127 | 78 | 60 |
| 3″ | 80 | 57 | 134 | 102 | 70 |
| 4″ | 100 | 67 | 162 | 117 | 84 |
| 5″ | 125 | 83 | 194 | 145 | 115 |
| 6″ | 150 | 95 | 218 | 170 | 134 |
| 8″ | 200 | 127 | 277 | 226 | 184 |
| 10″ | 250 | 140 | 336 | 265 | 220 |
| 12″ | 300 | 181 | 406 | 310 | 260 |
| 14″ | 350 | 184 | 447 | 360 | 302 |
| 16″ | 400 | 191 | 505 | 410 | 350 |
Notes

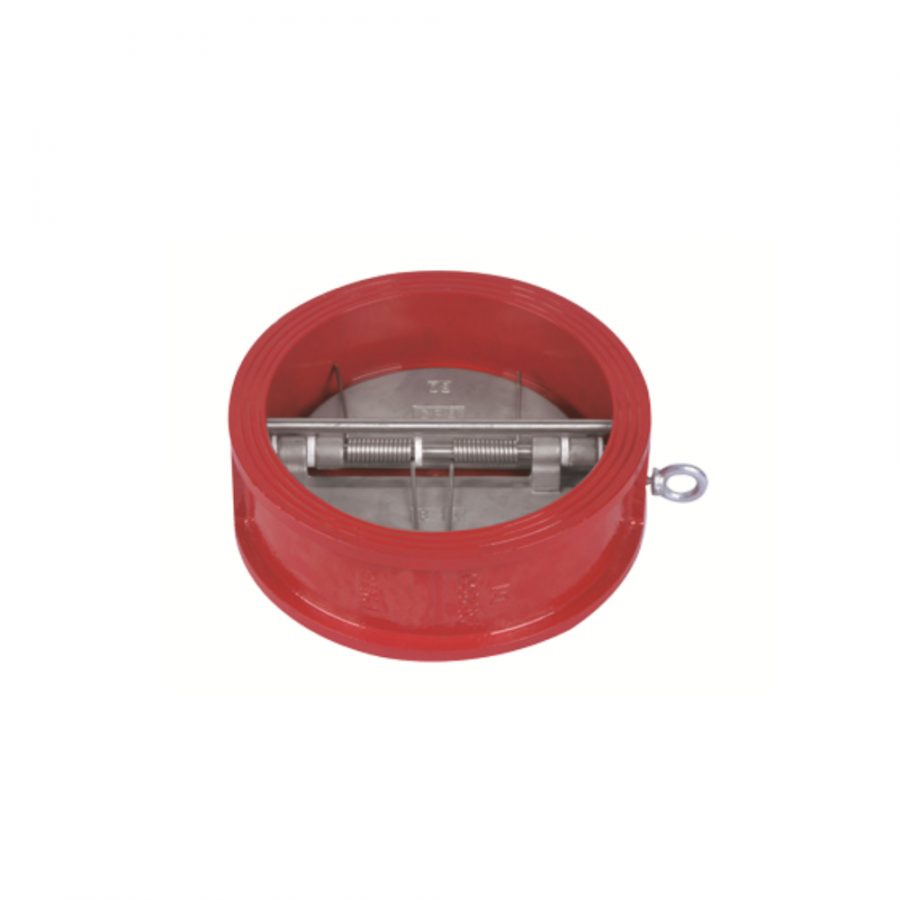

1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
