Description
Product DescriptionHSN : 84818030

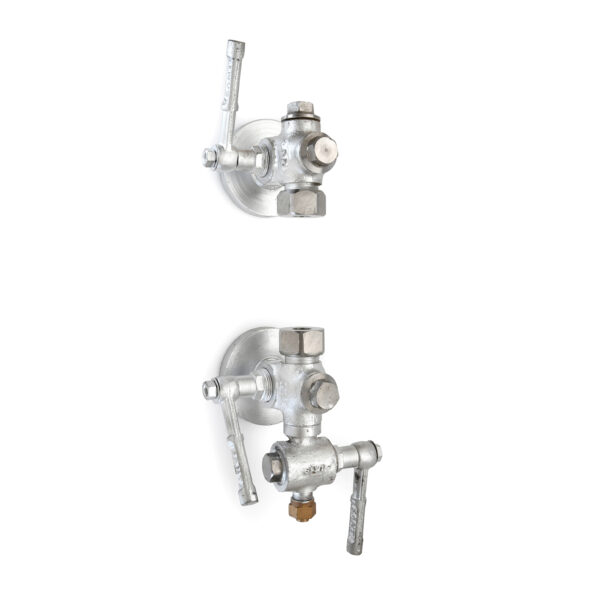

Product : ‘SANT’ Cast Steel Sleeve Packed Water Level Gauge
Body Material cum Standard : CCS (ASTM A216 Gr.WCB)
Description : With automatic shut off device in the water arm Right Hand / Left Hand Type
Trim : Stem SS AISI-410, Ball AISI-304
End Details : Flanges as per BS 10 Table J FF Undrilled
Testing & Certification
Body Test Pressure : 700 Psig Hyd.
Seat Test Pressure : 350 Psig Hyd.
Working Pressure : Max. BOP 350 Psig. (24.61Kg/cm²)
Maximum Working Temperature: 400ºC
Test Certificate in Form lll-C as per IBR is furnished with every supply.
Materials
| Components | Materials | Specifications |
|---|---|---|
| Body, Bonnet & Back Nuts | Cast Steel | ASTM A216 Gr.WCB |
| Sleeve | Moulded Asbestos | — |
| Spindle & Cover Nuts | Stainless Steel | AISI-410 |
| Handles | S.G. Iron | — |
| Name Plate | Brass Sheet | — |
| Rubber Cones | Rubber | — |
| Fasteners | Mild Steel | BS:916 |
Dimensions (in mm)
| Nominal Size | Nominal Size (Inches) | A (Inches) | B (Inches) | ||||
|---|---|---|---|---|---|---|---|
| 15 | 1/2 | 3 3/4 | 3/4 | ||||
| 20 | 3/4 | 3 3/4 | 1 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
