Product Description HSN : 84818030

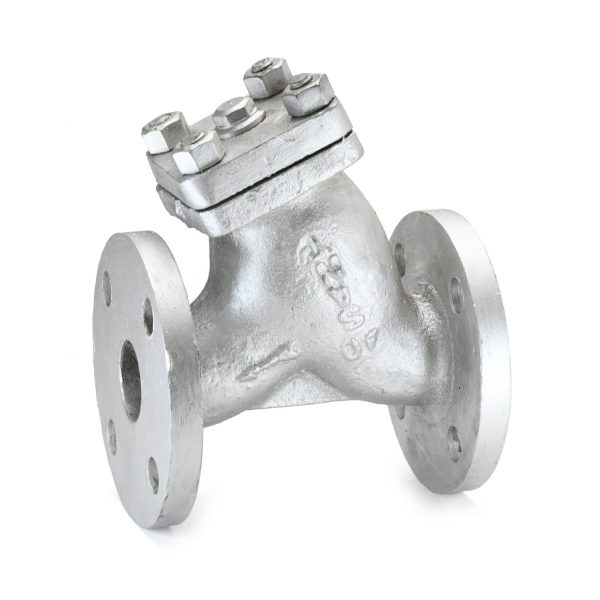

Product : Sant Cast Steel Y Type Strainer
Type of Pattern : Y Type
Body Material cum standard : CCS (ASTM A-216 Gr. WCB)
Product Description : Bolted Cover ‘Y’ Type
Trim : AISI-304, Screen 1.2mm dia perforation
End Details : Flanges as per BS10 Table F/Class-150
Testing & Certification
Body Test Pressure : 40kg/cm² Hyd.
Maximum Working Pressure : 20kg/cm²
Maximum Working Temperature : 400ºC
Our Works’ Test Certificate is furnished with every supply.
Materials
| Components | Materials | Specifications |
|---|---|---|
| Body, Cover | C.C.S. | ASTM A216 Gr. WCB |
| Drain Plug | S.S. | AISI-410 |
| Strainer (1.2mm dia perforation) | S.S. | AISI-304 |
| Gasket | Compressed Asbestos Fiber | — |
| Fasteners | Mild Steel | — |
Dimensions (in mm)
| Nominal Size | Nominal Size (Inches) | F | H (Approx.) |
|---|---|---|---|
| 40 | 1.1/2 | 165±2 | 145 |
| 50 | 2 | 185±2 | 155 |
| 65 | 2.1/2 | 206±2 | 185 |
| 80 | 3 | 255±2 | 210 |
| 100 | 4 | 295±2 | 255 |
| 150 | 6 | 385±2 | 300 |
| 200 | 8 | 475±3 | 375 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
