Description
Product Description HSN : 84813000

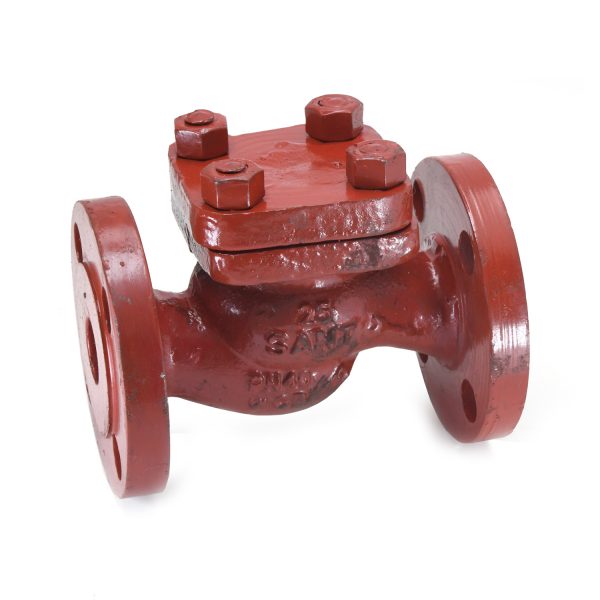

Product : ‘SANT’ Cast Steel Horizontal Check Valve
Product Standard : BS 5160
Pressure / Class / Rating : PN 40
Body Material cum Standard : CCS (ASTM A216 Gr.WCB)
Description : Bolted Bonnet
Type of Seat : Renewable seat
Type of Disc : Renewable disc
Trim : SS AISI-410
End Details : Flanges as per BS 4504 Part-1 / DIN 2545 RF undrilled
Testing & Certification
Body Test Pressure : 76 Bar g (1100 Psig) Hyd.
Seat Test Pressure : 40 Bar g (580 Psig) Hyd.
Maximum Working Temperature: 400ºC
Test Certificate in Form lll-C as per IBR is furnished with every supply.
Application
Materials
| Components | Materials | Specifications |
|---|---|---|
| Body, Cover | Cast Carbon Steel | ASTM A216 Gr.WCB |
| Body Seat Ring, Valve Disc | Stainless Steel | AISI-410 |
| Gasket | Compressed Asbestos Fibre | IS:2712 Gr.C |
| Fasteners | Mild Steel | — |
Dimensions (in mm)
| Nominal Size | Nominal Size (Inches) | F | H |
|---|---|---|---|
| 15 | 1/2 | 130±2 | 85 |
| 20 | 3/4 | 150±2 | 85 |
| 25 | 1 | 160±2 | 85 |
| 32 | 1.1/4 | 180±2 | 85 |
| 40 | 1.1/2 | 200±2 | 110 |
| 50 | 2 | 230±2 | 125 |
| 65 | 2.1/2 | 290±2 | 140 |
| 80 | 3 | 310±2 | 150 |
| 100 | 4 | 350±2 | 165 |
| 125 | 5 | 400±3 | 185 |
| 150 | 6 | 480±3 | 270 |
| 200 | 8 | 600±3 | 280 |
| 250 | 10 | 730±4 | 300 |
| 300 | 12 | 850±5 | 385 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
