Description
Product Description HSN : 84818030
Product : Sant Cast Steel Globe Valve
Product Standard : BS 1873
Pressure / Class Rating : Class 600
Body Material cum standard : CCS (ASTM A-216 Gr. WCB)
Product Description : Bolted Bonnet O/S Yoke Type Rising Stem
Type of Seat : Renewable
Type of Disc : Renewable Disc
Trim : SS AISI-410
End Details : Flanges as per ASME B 16.5 Class 600 RF Undrilled
Testing & Certification
Body Test Pressure : 153 Barg (2220 Psig.) Hyd.
Seat Test Pressure : 112 Barg (1630 Psig.) Hyd. 6.9barg
100 Psig. (AIR)
Our Works’ Test Certificate is furnished with every supply.
Materials
| Components | Materials | Specifications |
|---|---|---|
| Body, Bonnet, Disc, Gland Flange | C.C.S. | ASTM A216 Gr. WCB |
| Stem, Back Seat Bush, Body Seat Ring, Valve Disc Ring, Gland Follower, Lantern Ring & Thrust Plate | Stainless Steel | AISI-410 |
| Gasket | Spiral Wound S.S. 304 with Graphite Filler | — |
| Gland Packing | Expanded Pure Flexible Graphite | — |
| Fasteners | Mild Steel | — |
| Yoke Bush | Aluminum Bronze | — |
| Handwheel | S.G. Iron | — |
Dimensions (in mm)
| Nominal Size | Nominal Size (Inches) | F±2 | H (Approx.) | ∅W (Approx.) |
|---|---|---|---|---|
| 40 | 1.1/2 | 242 | 305 | 200 |
| 50 | 2 | 292 | 360 | 254 |
| 65 | 2.1/2 | 330 | 405 | 305 |
| 80 | 3 | 356 | 450 | 305 |
| 100 | 4 | 432 | 525 | 450 |
| 150 | 6 | 559 | 670 | 560 |
| 200 | 8 | 660 | 740 | 600 |
Notes

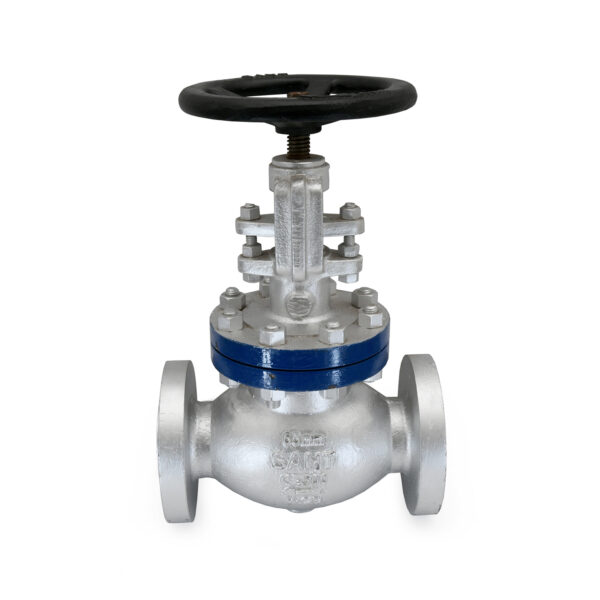

1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
