CR-19B Cast Iron Wedge Sluice Valve Flanged, OS & Yoke Type Rising Stem, PN16

CR-19B Cast Iron Wedge Sluice Valve Flanged, OS & Yoke Type Rising Stem, PN16

$0.00

Product Description HSN : 84818030

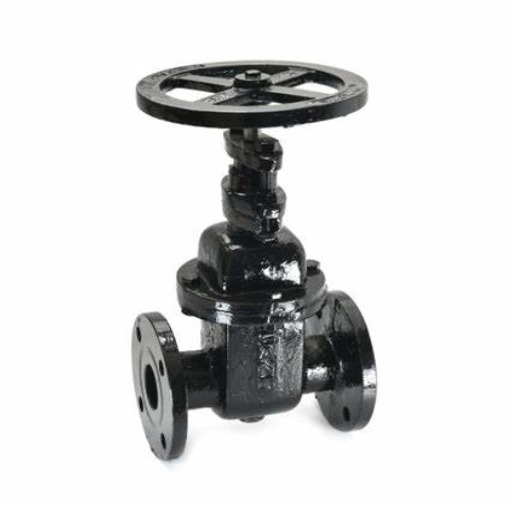

Product : ‘SANT’ Cast Iron Wedge Gate Sluice Valve
Product Standard : Face To Face as per IS:14846
Pressure / Class / Rating : PN 16 PD Type
Body Material cum Standard : Cast Iron IS:210 Gr.FG200
Description : Bolted Bonnet, Outside Screw & Yoke Type Rising Stem
Type of Seat : Renewable seat
Type of Disc : Solid wedge
Trim : Cu-Alloy Rings, Stem SS AISI-410
Gland Packing : Rubber
End Details : Flanges as per IS:1538 FF drilled

Testing & Certification

Body Test Pressure : 2.4MPa (Hyd.)
Seat Test Pressure : 1.6MPa (Hyd.)

Our Works’ Test Certificate is furnished with every supply.

Categories: ,

Description

Materials

Components Materials Specifications
Body, Handwheel, Wedge, Bonnet, Gland Cast Iron IS:210 Gr.FG200
Handwheel Nut, Yoke Sleeve Nut, Stem, Gland, Back Seat Bush Stainless Steel AISI-410
Studs & Nuts. M.S —
Gland Packing Rubber IS:638 Type B
Gasket Rubber IS:638 Type B
Body Seat Ring, Wedge Ring Leaded Tin Bronze IS:318 Gr.LTB2
Yoke Sleeve Bronze —
Bolts / Nuts Mild Steel —

Dimensions (in mm)

Nominal Size Nominal Size (Inches) F H (Approx.) ∅W (Approx.)
50 2 178±2 315 178
65 2.1/2 190±2 365 178
80 3 203±2 410 210
100 4 229±2 475 254
125 5 254±2 535 254
150 6 267±2 620 305
200 8 292±2 795 400
250 10 330±3 930 450
300 12 356±3 1100 500

Application

  • Water

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
