Description
Product Description HSN : 84818090

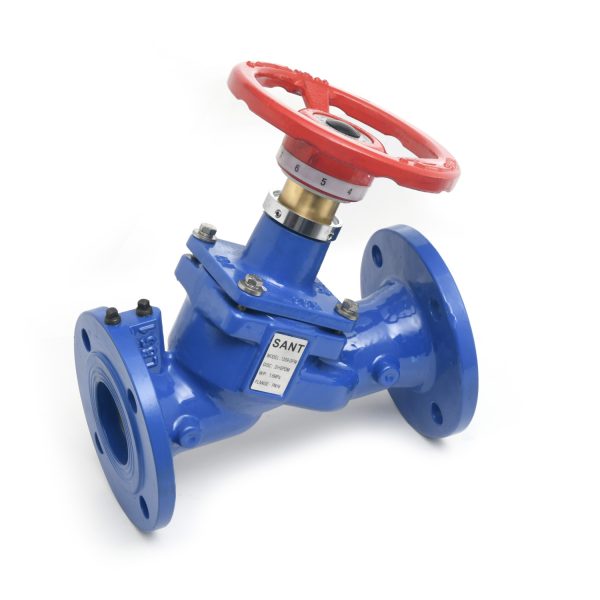

Product : Sant Ductile Iron Balancing Valve
Body Material cum standard : DI
Product Description : Precise Balancing, Double Regulation Type
Trim : DI+EPDM
End Details : Flanged Ends
Testing & Certification
Maximum Working Pressure : 1.6 MPa Hyd. (232Psig)
Body Test Pressure : 2.4 MPa Hyd. (348Psig)
Maximum Working Temperature . : 120ºC
Our Works’ Test Certificate is furnished with every supply.
Materials
| Components | Materials |
|---|---|
| Body, Bonnet | Ductile Iron |
| Disc | D.I./ EPDM |
| Stem Assembly | S.S. |
| Fasteners | Mild Steel |
| Hand Wheel | C.I./ D.I. |
Dimensions (in mm)
| Size | F | ∅W (Approx.) |
|---|---|---|
| 65 | 290±2 | 200 |
| 80 | 310±2 | 200 |
| 100 | 350±2 | 240 |
| 125 | 400±2 | 290 |
| 150 | 480±3 | 290 |
| 200 | 600±3 | 350 |
| 250 | 732±4 | 420 |
| 300 | 850±4 | 420 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
