CIBFP C.I. Butterfly Valve with Pneumatic Actuator Wafer Type, PN 10/PN 16

Product Description HSN : 84818030

Product : Sant C.I. Butterfly Valve with Pneumatic Actuator
Type of Pattern : Water Type
Pressure/Class/Rating : PN 10/PN 16
Body Material Cum Standard : CI to IS:210 Gr FG200
Product Description : Wafer Type
Type of Seat : Nitrile/EPDM Lining
Type of Disc : Stainless Steel CF8
Stem : AISI-410
End Details : Suitable insertion between flanges as per BS 10 Table
F/D/E or ASME B 16.1 Class-125

Testing & Certification

Ratings:

PN10
Body Test Pressure : 1.5MPa (218 Psig) Hyd
Seat Test Pressure : 1.1MPa (160 Psig) Hyd

PN16
Body Test Pressure : 2.4MPa (348 Psig) Hyd
Seat Test Pressure : 1.8MPa (261 Psig) Hyd

For more enquiry or purchase contact us:

Description

Description

Materials

Components	Materials	Specifications
Bush	PTFE
Body	Cast Iron	IS:210:Gr.FG200
Upper Stem	SS	AISI-410
Cover Plate	Carbon Steel
Body Lining	EPDM/Nitrile Rubber
Disc	SS	CF8
Lower Stem	SS	AISI-410
Locking Screw	Steel
Bolts & Nuts	Carbon Steel

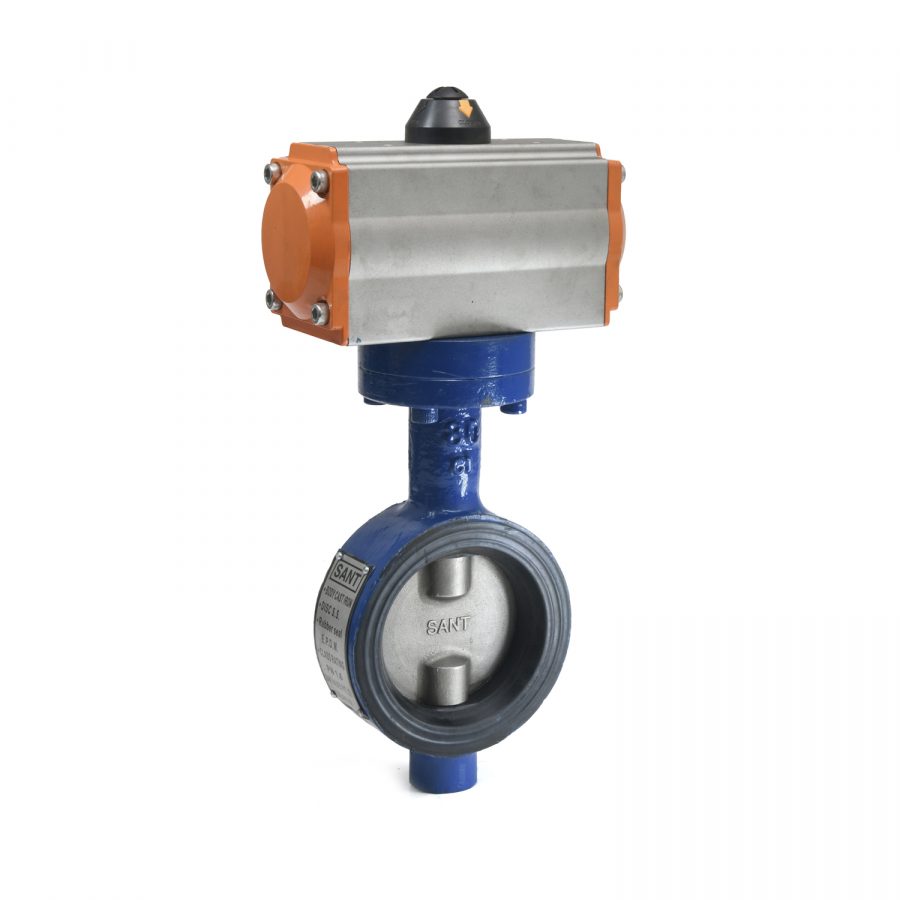

Pneumatic Actuator

Dimensions (in mm)

Size	F±2	D
40	33	82
50	43	95
65	46	106
80	46	124
100	52	150
125	56	174
150	56	210
200	60	260

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
