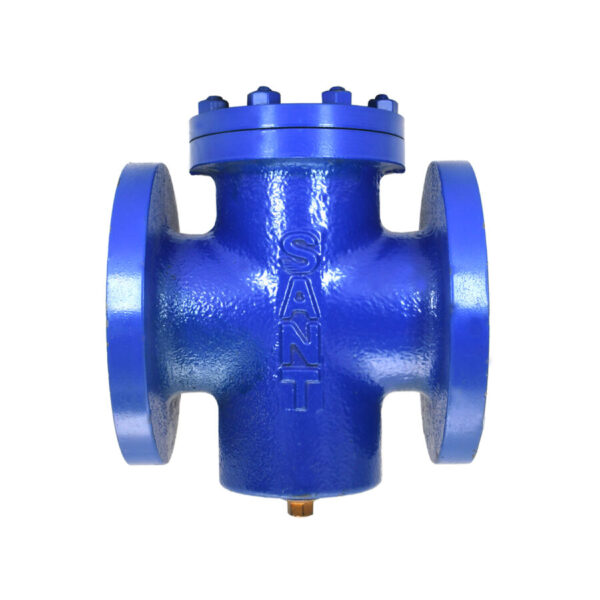

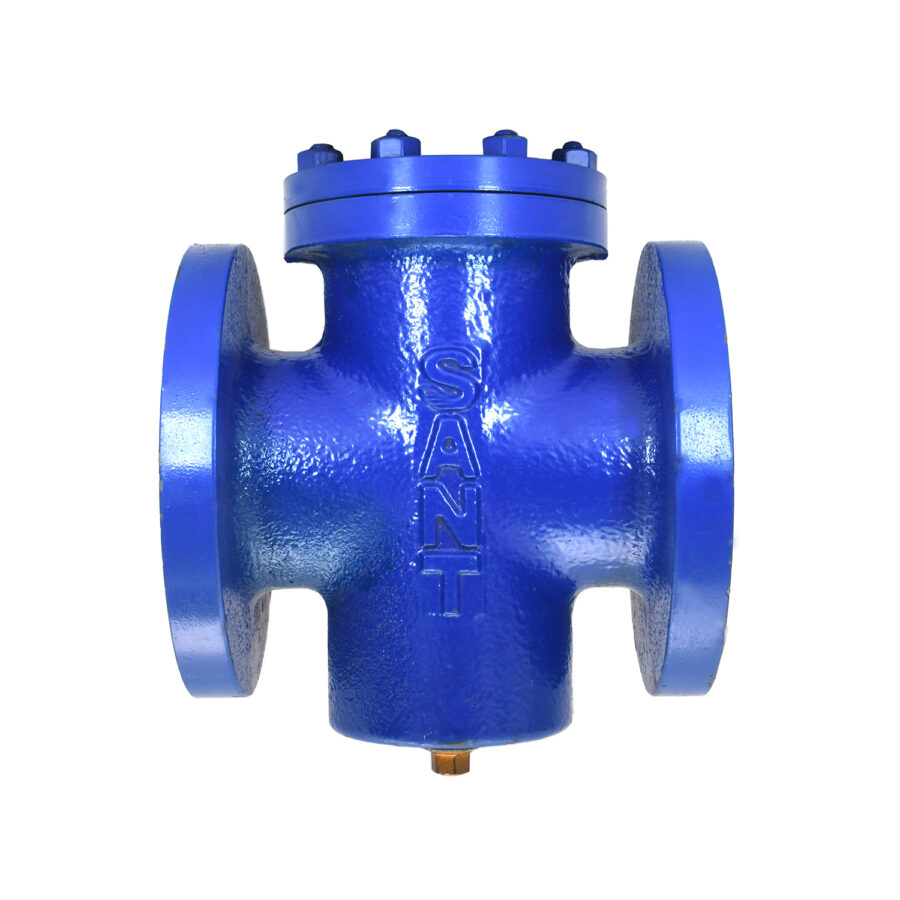

CI-19 C.I. T Strainer Flanged, Class-150

Product Description HSN : 84818030

Product : Sant C.I. ‘T’ Strainer Flanged
Type of Pattern : Tee Type
Body Material cum standard : Cast Iron IS 210 Gr FG 200
Product Description : Bolted Bonnet
Trim : SS 304 Screen 1.2 perforation
End Details : Flanged as per Class-150

Testing & Certification

Body Test Pressure : 300Psig. (Hyd.)

Our Works’ Test Certificate is furnished with every supply.

For more enquiry or purchase contact us:

Description

Description

Materials

Components	Materials	Specifications
Body, Cover	Cast Iron	IS:210 Gr.FG220
Strainer	Stainless Steel	AISI-304
Gasket	Compressed Asbestos Fiber	—
Drain Plug	Mild Steel	—

Dimensions (in mm)

Nominal Size	Nominal Size (Inches)	F	H (Approx.)
50	2	160±2	115
65	2 1/2	185±2	140
80	3	206±2	150
100	4	254±2	175
150	6	305±2	200
200	8	380±2	245

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
