Product Description

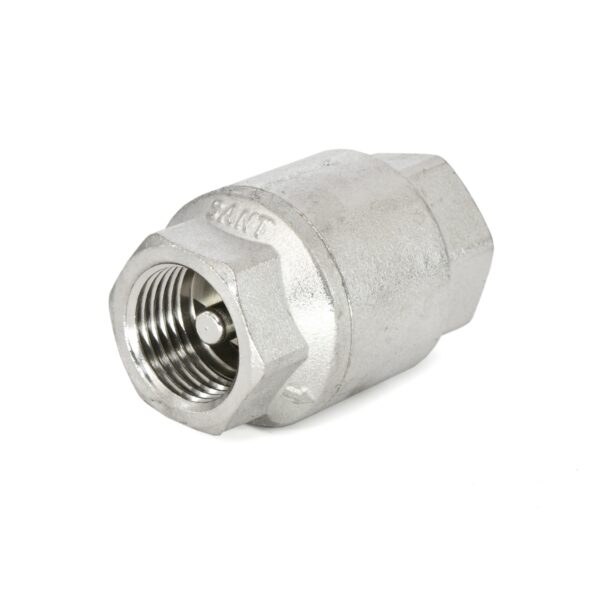

Product : Sant Brass Universal Check Valve
Body Material : Forged Brass
Type of Seat : Integral Seat
Type of Disc : Brass With ‘O’ Ring
End Details : Screwed end with BSP Parallel Threads
Testing & Certification
Body Test Pressure : 20kg/cm²g (Hyd.)
Seat Test Pressure : 13.65kg/cm²g (Hyd.)
Materials
| Components | Materials | Specifications |
|---|---|---|
| Body | Forged Brass | IS:6912 FLB |
| Disc | Brass | – |
| Spring | Steel | – |
| ‘O’ Ring | Rubber | – |
| Lower Body | Forged Brass | IS:6912 FLB |
Dimensions (in mm)
| Size | L |
|---|---|
| 15 | 52 |
| 20 | 59 |
| 25 | 65 |
| 32 | 69 |
| 40 | 79 |
| 50 | 89 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
