Description
Product Description

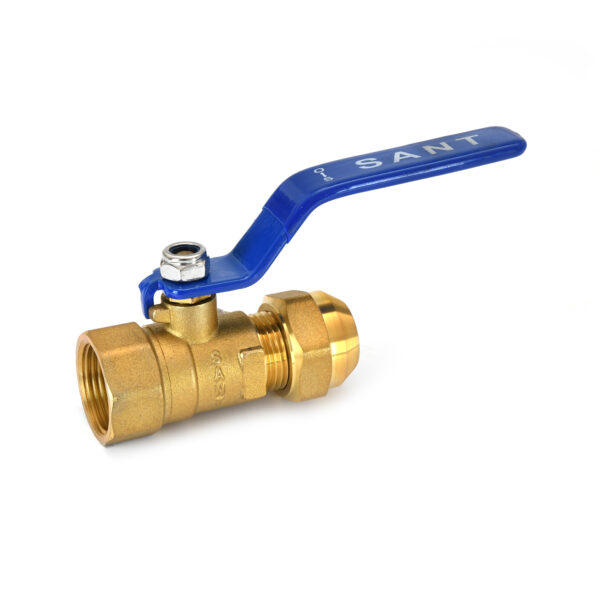

Product : Sant Brass Ball Valve with Flare Nut
Type of Pattern : Two Pcs design with Lever Operated and Flare Nut
Body & Bonnet : Brass
Type of Ball : Brass Chrome Plated
Type of Seats : PTFE Renewable Seats
Stem : Brass
Packing : PTFE
End Details : Screwed end BSP Female Threads and one end
with Swivel Nut (End connection 5/8″)
Testing & Certification
Body Test Pressure : 20kg/cm²g (Hyd.)
Seat Test Pressure : 13.5kg/cm²g (Hyd.)
Materials
| Components | Materials | Specifications |
|---|---|---|
| Nut | S.S. | – |
| Gland | Brass | – |
| Gland Seal | PTFE | – |
| Body of Ball Valve | Brass | – |
| Seat | PTFE | – |
| Ball | Brass | – |
| Stem | Brass | – |
| Flare Nut | Brass | – |
| Lever | M.S (Power Coated) | – |
Dimensions (in mm)
| Size | F | LL | T |
|---|---|---|---|
| 20 | 77 | 100 | 3/4″ BSP |
| 25 | 77 | 100 | 1″ BSP |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
