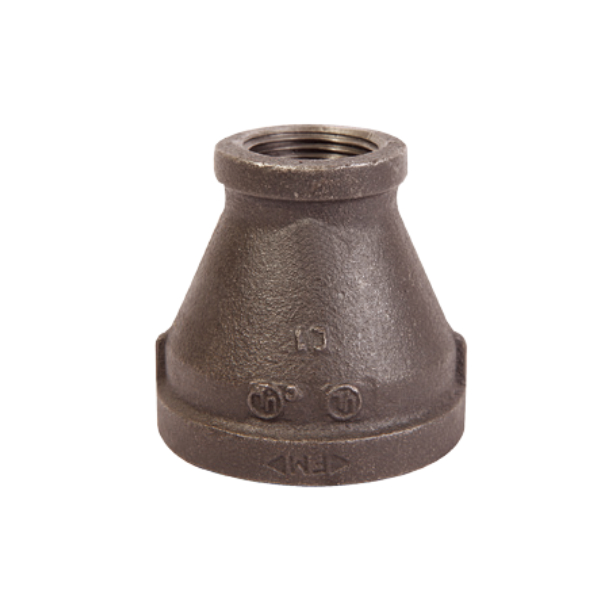

Description
Dimensions (in mm)
| Inch | mm | A |
|---|---|---|
| 1×1/2 | 25×15 | 42.9 |
| 1×3/4 | 25×20 | 42.9 |
| 1.1/4×3/4 | 32×20 | 52.3 |
| 1.1/4×1 | 32×22 | 52.3 |
| 1.1/2×1 | 40×25 | 58.7 |
| 1.1/2×1.1/4 | 40×32 | 58.7 |
| 2×1 | 50×25 | 71.4 |
| 2×1.1/4 | 50×32 | 71.4 |
| 2×1.1/2 | 50×40 | 71.4 |
Product Certification
UL Listed / FM Approved (EX 6624)
Material
ASTM A536
Threads
ASME B1.20.1
Pressure Rating
Test Pressure : 12.5 MPa
Max. Working Pressure : 2.5 MPa
| Inch | mm | A |
|---|---|---|
| 1×1/2 | 25×15 | 42.9 |
| 1×3/4 | 25×20 | 42.9 |
| 1.1/4×3/4 | 32×20 | 52.3 |
| 1.1/4×1 | 32×22 | 52.3 |
| 1.1/2×1 | 40×25 | 58.7 |
| 1.1/2×1.1/4 | 40×32 | 58.7 |
| 2×1 | 50×25 | 71.4 |
| 2×1.1/4 | 50×32 | 71.4 |
| 2×1.1/2 | 50×40 | 71.4 |
